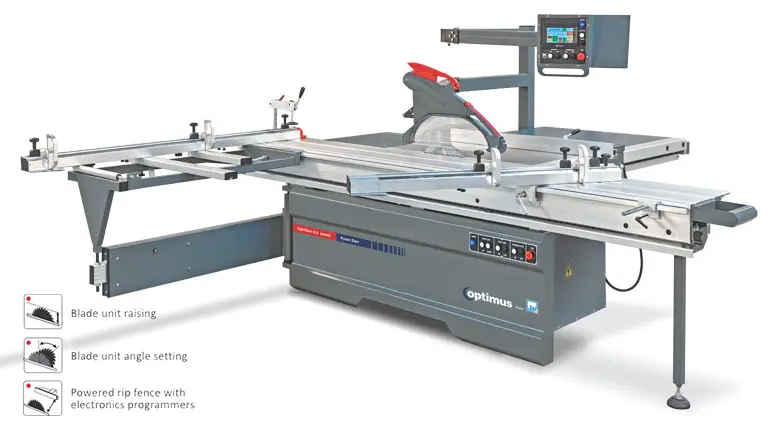

OptiSaw 3.2 (Auto) Panel Saw
The OptiSaw 3.2 (Auto) is an advanced, heavy-duty panel saw designed to provide precise, burr-free cuts with ease and efficiency.
This machine incorporates high-quality engineering and cutting-edge technology, making it ideal for demanding woodworking tasks, from straight-line to rip and mitre cuts.
Product Highlights
- Precision Cuts : Heavy-duty, sturdy build ensures smooth, accurate, burr-free cutting.
- User-Friendly PLC Control : Smart Touch PLC control panel at eye level for ease of operation.
- Motorized Movements : Automated up/down and tilting functions managed from the control panel for increased precision.
- Effortless Blade Adjustment : Quick and convenient blade height and scoring blade adjustments from the front of the machine.
Heavy duty precision sliding table runs on large rollers sandwiched between hard chromed guide bars, guaranteeing absolute precision. Hollow multichamber aluminum extrusion guarantees optimal torsion resistance & rigidity.
The motorized ripfence has an accuracy +/-0.1 mm. The high precision ball spindle system guarantees precise adjustment of the ripfence. Position had been set from control panel. Extra support for wider work piece.
Smooth-running and powerful saw unit : It is a powerhouse produced with the latest manufacturing technology. The high-precision vertical movement of the unit is linear with maintenance -free guide bearings & allows the whole units to move easily.
Eye-level operating panel : All major control functions are always visible. The panel pivots into the most convenient position & is accessible from both sides of the machine.
Easy & fast, saw-scoring blades changing. Easy scoring adjustment from front side. Entire saw unit on heavy duty cast iron trunnion.
Easy & fast, saw-scoring blades changing. Easy scoring adjustment from front side. Entire saw unit on heavy duty cast iron trunnion.
The sturdy frame provides a rigid support for all cutting with telescopic cross-cut fence with aluminum guides for precise and easy positioned. Also panels to be squared and cuts at an angle up-to 45° on both sides of the table
Digital Read Out (DRO) – Optional : Crosscut Mitre fence is equipped with DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm

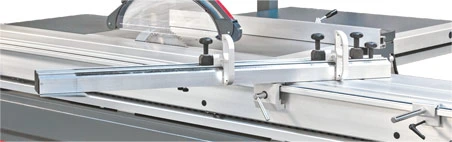

Mitre fence (Heavy Duty) is equipped with Flip over brackets for angular cutting.
Central Lubrication System
Key Features
High-Quality Sliding Table
Heavy-duty precision sliding table supported by large rollers between chromed guide bars ensures absolute precision.
Motorized Rip Fence
The rip fence powered by an electronic programming system offers precise adjustments with an accuracy of ±0.1 mm, allowing easy setting adjustments from the control panel.
Robust Saw Unit
The powerful, smooth-running saw unit offers vertical movement through linear, maintenance-free guide bearings, facilitating effortless operation.
Convenient Operating Panel
Eye-level control panel pivots for optimal viewing from either side, keeping all key functions within easy reach.
Central Lubrication System
Integrated lubrication circulates oil to essential machine parts, enhancing performance and extending component life.
Sturdy Frame and Mitre Fence
The strong frame, combined with a telescopic cross-cut fence with aluminum guides, supports angular cuts up to 45° on either side of the table.
Special Features
Digital Read Out (DRO) - Optional
The crosscut mitre fence can be equipped with DRO for digital job length display, achieving precision accuracy of ±0.1 mm.
Enhanced Saw Unit
The saw unit, mounted on a robust cast iron trunnion, is designed for seamless, high-power operation.
Versatile Cutting Applications
Suitable for various materials, including thick plastic. Ideal for sizing, straight-line, rip, and mitre cuts with efficiency and precision.
Heavy-Duty Mitre Fence
Equipped with flip-over brackets, the mitre fence allows angular cutting with ease.
Model | Unit | OptiSaw 3.2 (auto) |
Sliding Table | ||
Sliding table length | mm | 3200 |
Sliding table width | mm | 435 |
Main Saw Unit | ||
Max. diameter saw blade | mm | 355 x 30 |
Saw blade speed | rpm | 3000 / 4000 / 5000 |
Tilting of saw blade | degree | 90°- 45° (Auto) |
Up-Down movement of saw blade | - | Auto |
Motor for saw blade | hp | 7.5 |
Scoring Saw Unit | ||
Max. diameter scoring blade | mm | 120 x 20 |
Scoring blade speed | rpm | 8500 |
Tilting of scoring blade | degree | 90°- 45° (Auto) |
Up-Down movement of scoring blade | - | Auto |
Lateral adjustment of scoring blade | mm | ± 3 |
Max. depth of cut of scoring blade | mm | 5 |
Motor for scoring unit | hp | 1 |
Other Specifications | ||
Cutting width / rip capacity | mm | 1250 |
Length cross-cut fence | mm | 2000 (telescopes to to 3200 mm) |
Dust extraction port diameter | mm | 100 |
Total power | hp | 8.5 |
Machine dimension (L x B x H) | mm | 3400 x 3750 x 1800 |
Approx. net weight | kg | 1300 |
| Model | OptiSaw 3.2 (Auto) |
|---|---|
|
Cutting Precision
|
Burr-free, precise cuts
|
|
Control Panel
|
Smart Touch PLC, eye-level
|
|
Rip Fence Accuracy
|
±0.1 mm
|
|
Blade Adjustment
|
Front-access for easy scoring and blade height adjustments
|
|
Mitre Angle
|
Up to 45°
|
|
Lubrication System
|
Central automatic lubrication
|
