Clamp Carrier - Hydraulic
Wood is in Our Blood , Wood is Our World

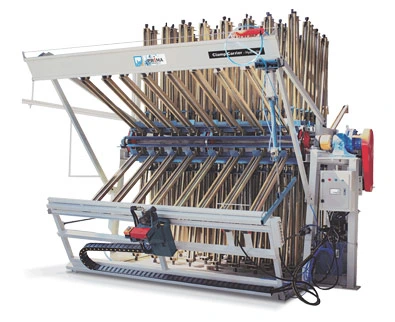

Clamp Carrier - Hydraulic
Heavy duty clamps provide powerful, uniform & fast clamping. Minimize operator fatigue & maximize productivity
- Model No.
- J-1408 (H), J-2008 (H)
Salient Features :-
- The machine equipped with hydraulically operated clamptighteners, providing extremely powerful, uniform and fast clamping performance.
- Clamp carriers are very simple and most efficient equipment - with maximum rigidity and durability.
- Every machine has a special steel frame. Large diameter shafts, heavy-duty chains, large cast iron sprockets, and an auto clamp carrier rotation cycle, all of which help to minimize operator fatigue and maximise productivity.
- Super heavy duty clamps with zinc plated corrosion resistant, rails and screws provide super strength and durability. Clamps have a high jaw.
- The rear jaw is quickly and easily repositioned for different panel widths.
The Pneumatic Panel Flattener is designed to hold down the stock flat while each clamp is tightened.
The machine equipped with hydraulically operated clamp tighteners, providing extremely powerful, uniform and fast clamping performance.
Super heavy duty clamps with zinc plated corrosion resistant, rails and screws provide super strength and durability. Clamps have a high jaw.
Heavy-duty worm reducer insures control indexing, even when rotating on unbalanced load. The chain for rotation feeding is heavy-duty and stable.
Specifications | Unit | J-1408 H | J-2008 H |
Max. pressing length | mm | 2600 | 2600 |
Max. pressing width | mm | 1250 | 1250 |
Pressing thickness | mm | 10 - 90 | 10 - 90 |
No of sections | No | 14 Rows | 20 Rows |
No of clamps per each section | No | 8 | 8 |
No hold down bar | No | 1 | 1 |
No of pneumatic motor gun | Set | 1 | 1 |
Voltage & rotary power | hp | 1.5 | 1.5 |
Hydraulic pump motor power | hp | 5 | 5 |
Approx. machine net weight | kg | 4800 | 6000 |
Overall dimension | mm | 4500 x 3800 x 3650 | 5000 x 3800 x 3650 |
