CNC Router J-1325 VT +
Pilot Machinery’s CNC Router J-1325 VT + combines precision engineering and versatility, ideal for high-quality routing tasks in woodworking and panel processing. Equipped with a servo motor for enhanced speed and accuracy, this model provides reliable, seamless operation for diverse projects. The J-1325 + model is also available without a vacuum table for flexible application needs.
Special Features
- Tool Holding Guide System This auto-sliding guide system offers enhanced design versatility, allowing seamless alignment with CNC design commands.
- Rotary Attachment (Optional) An optional rotary attachment for cylindrical workpieces, perfect for detailed carvings on table or chair legs, making this CNC router versatile for intricate designs.

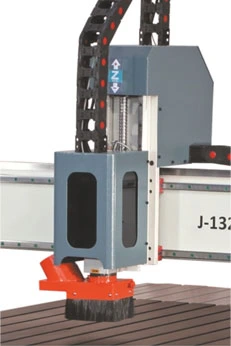

Tool holding guide system : A precision system to carry the CNC design commands. This Auto-Sliding guide system allows great design flexibility.
Control System : A convenient, separate control panel box allows flexibility and efficiency in machine operating. Digital Signal processing is applied here as the controlling system.
Precision Vacuum Table : (Optional-Ask for Separate Quote) for vacuumed fixing and sure clamping of the workpiece, to ensure steadiness during the entire routing operations

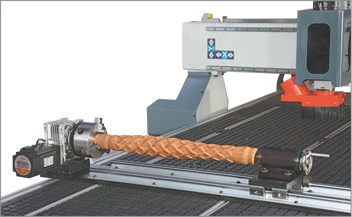

Rotary attachment (Optional)
Key Features
High-Precision Guide Rails
Features "Hiwin" Taiwan heavy-duty linear guide rails for stable, accurate operation, built to handle intensive use while maintaining precision.
Advanced Helical Rack & Pinion Gear Drive
A robust and larger helical rack and pinion system for smoother, accurate movement, ensuring stability across extensive production runs.
Servo Motors with Inverter
Servo motor-driven for precise control, supported by inverters that provide optimal speed adjustment for intricate design tasks.
Heavy-Duty Ball Screw
High-precision ball screws ensure accuracy in all axes, essential for consistent routing results.
Precision Vacuum Table
A 5.5 kW water-cooled vacuum pump secures workpieces for steadfast routing, essential for achieving high-quality finishes. A version without a vacuum table is also available.
Easy Lubrication System
Integrated lubrication allows simplified maintenance, ensuring long-lasting performance.
Control Panel with Digital Signal Processing
The control system, featuring Digital Signal Processing (DSP), is housed in a separate panel for user convenience, facilitating efficient operations and design flexibility.
Model No | Unit | J-1325 VT + With Servo Motor | J-1325 + With Servo Motor |
X - Y - Z axis working area | mm | 1300 x 2500 x 200 | 1300 x 2500 x 200 |
Traveling positioning accuracy | mm | ±0.05 | ±0.05 |
X - Y working delicacy | mm | <0.01 | <0.01 |
X - Y movement | - | Rack & pinion gear, Shaft linear bearings | Rack & pinion gear, Shaft linear bearings |
Z movement | - | Heavy duty ball screw, Shaft linear bearings | Heavy duty ball screw, Shaft linear bearings |
Body structure | Steel structure with six legs | Steel structure with six legs | |
Maximum speed | mm/min | 35,000 | 35,000 |
Maximum cutting speed | mm/min | 25,000 | 25,000 |
Spindle | kw/rpm | 3.5 kw / 18000 rpm Air Cooled Spindle | 3.5 kw / 18000 rpm Air Cooled Spindle |
Drive motors | - | Drive motors | Drive motors |
Invertor | kw | 3.7 | 3.7 |
Guide rail | - | "Hiwin" Taiwan heavy duty high precision linear guide rail | "Hiwin" Taiwan heavy duty high precision linear guide rail |
Working voltage | - | AC 380V / 50Hz, 3Ø | AC 380V / 50Hz, 3Ø |
Command code | - | G code | G code |
Computer interface | - | USB 2.0 | USB 2.0 |
Collet type & size | - | ER25 (12.7, 6, 3.175) | ER25 (12.7, 6, 3.175) |
Compatible Software | - | Art Cam / Type 3 | Art Cam / Type 3 |
Controls | - | Digital signal processor (DSP) A11E | Digital signal processor (DSP) A11E |
Oil lubrication system | - | Manual | Manual |
Vacuum table | - | Standard with 5.5kw Water cooled vacuum pump | n/a |
Total Power | hp | 18 | 10.5 |
Machine dimensions (L x B x H) | mm | 3200 x 3500 x 1800 | 3200 x 3500 x 1800 |
Approx. net weight | Kg | 900 | 800 |
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
Yes, the J-1325 VT + model can handle 2D and 3D tasks, ideal for various woodworking and panel processing applications.
The machine is equipped with a user-friendly lubrication system for easy maintenance, along with robust guide rails and ball screws for long-term durability.
The vacuum table provides strong, stable clamping for workpieces, preventing movement during operations, which ensures accuracy and high-quality finishing.
