Cold Press
The whole world of Panel Processing machines
Cold Press J-100T.in
Pilot Machinery’s Cold Press J-100T.in is engineered to deliver outstanding lamination and pressing performance across a range of materials, from composite wood and plywood to fiber and honeycomb boards. Designed to meet the rigorous needs of furniture and board lamination industries, this machine offers optimal pressing strength for particle, MDF, and HDF boards. Its robust 4-cylinder system ensures even pressure distribution, enabling a seamless and efficient bonding process.

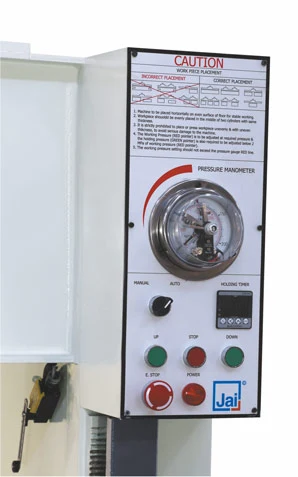

Control panel for controls and display with Compression holding timer, alarm, pressure meter with pressure setting indicator.
Dual limit Switch to control the pressing of work piece. Platen designed to take heavy compression loads. Pressing platen is synchronized geared bar on both side for smooth up-down movement.
Key Features
Versatile Lamination Capabilities
Ideal for composite wood, decorative papers, plywood, and more.
High Efficiency
Ensures quick, effective pressing with minimal setup for increased productivity.
Robust 4-Cylinder Construction
Uniform load distribution and reliable pressing power.
User-Friendly Controls
Equipped with manual and semi-automatic controls for ease of use.
Enhanced Safety
Emergency stop switches and motor overload relay for secure operation.
Heavy-Duty Platen Design
Synchronization on both sides for smooth up-down movement under heavy loads.
Special Features
Advanced Control Panel
Features include a compression holding timer, alarm, and pressure meter with an indicator for precise pressure settings.
Dual Limit Switches
Provides accurate control over pressing force on workpieces.
Built to Withstand High Loads
The heavy-duty platen construction withstands intense compression, maintaining operational consistency.
Model No | Unit | J-100T.in |
Max.Load On Work Table | Ton | 100 |
Platen Size | mm | 2500 x 1250 |
Max.Platen Opening | mm | 1000 |
No of Hydraulic Cylinders | nos | 4 |
Bore Size of Hydraulic Cylinders | mm | 125Φ |
Installed Power | hp | 5 |
Machine dimension (L x B x H) | mm | 3000 x 1270 x 2300 |
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
This machine is highly versatile, suitable for various laminations on composite wood, plywood, MDF, HDF, and decorative boards.
Yes, it features both manual and semi-automatic controls, ensuring a straightforward user experience.
The machine includes emergency stop switches, motor overload relay, and dual limit switches to ensure safe operation during pressing.
