Affordable Edge Bander For Handleless Drawers, Shutters, and Wardrobes
The Curvilinear Edge Bander J-3045.in is an ideal solution for applying edge banding to straight, curved, or 45° panels. This semi-automatic machine is designed specifically for handleless drawers, door frames, and worktables. With features that enhance precision and flexibility, this model ensures high-quality edge banding for curvilinear workpieces.
Special Features
- Semi-automatic operation ideal for curvilinear and 45° edge banding
- Pneumatic cutter for precise, repetitive tasks
- Smooth operation with a German gearbox and adjustable working table
- Low maintenance with energy-efficient glue temperature control
- Durable construction for long-lasting performance
The glue in the glue pot, glue leveler, wiper, the extrusion screw and the heating element all make a bonding system, which gives an effective & efficient banding to the work piece.
The pneumatic cutting device can be set to actuate the pneumatic cutter to cut the band for a pre-defined length using an electronic counter.
A specially designed hylum surface working table can be tilted from 0° to 45°
Inclined 45° Edge Banding
A user friendly electro-pneumatic control panel which monitors & controls the operation

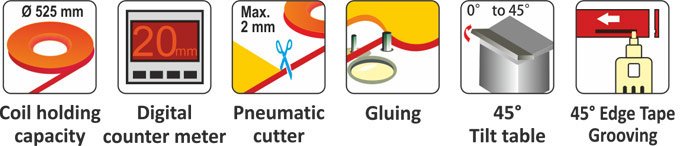

Salient Features
Versatile Application
Suitable for edge banding on straight or shaped panels, including 45° panels, widely used for manufacturing handleless drawers, door frames, and worktables.
Pneumatic Cutting Device
Features a pneumatic cutter, activated by a foot switch, to pre-define the length of PVC/ABS tape, making it perfect for repetitive tasks.
Digital Millimeter Counter
Electronic counter for accurate length adjustment, ensuring precise and consistent results.
Efficient Gluing System
The glue roller applies adhesive on both the board and tape for perfect bonding, providing excellent durability and finish.
Smooth Drive
Powered by a German gearbox, the machine offers smooth operation with long-lasting synthetic lubrication, ensuring efficient performance.
Variable Speed Control
Easily adjustable speed ranging from 4 to 12 m/min, offering flexibility for different workpieces.
Automatic Glue Temperature Control
After temporary non-use, the glue temperature automatically lowers to conserve energy and maintain optimal efficiency.
Durable Support Rollers
Hard chrome steel rollers support and guide the workpiece for frictionless movement and precision.
Adjustable Working Table
The working table features a specially designed hylum surface for heat insulation and frictionless movement, tilting from 0° to 45° for various applications.
Key Features
Glue and Bonding System
The J-3045.in features an advanced bonding system with a glue pot, glue leveler, wiper, extrusion screw, and heating element, ensuring efficient and uniform edge banding. The specially designed height-adjustable steel roller guarantees perfect bonding between the edge band and the workpiece.
Pneumatic Cutting
The pneumatic cutting device allows precise pre-cutting of the banding material to a pre-defined length. This is managed via an electronic counter, making it easy to achieve consistent results for repetitive work.
45° Edge Banding
Designed for 45° inclined panels, the machine supports 45° edge tape grooving, making it highly suitable for handleless drawer fronts and other angled applications.
Adjustable Working Table
The working table can be tilted between 0° and 45°, providing flexibility in working with different types of panels. Its heat-insulated hylum surface ensures smooth, friction-free movement of the workpiece.
User-Friendly Control Panel
The electro-pneumatic control panel monitors and controls the machine’s operations, ensuring easy adjustments and smooth performance.
Model No | Unit | J-3045.in |
Table size (L x B) | mm | 1150 x 900 |
Minimum work piece length | mm | 280 |
work piece thickness range | ||
- Inclined 45° Edge | mm | 10 - 25 |
- Full Straight Edge | mm | 10 - 50 |
Edge Banding Thickness for PVC & ABS in coil form | mm | 0.4 - 2.0 |
Min-Radius for curved Edging | mm | 20 |
Glue pot capacity | kg | 3 |
Feed speed | m/min | 4 to 12 |
Front table adjustment (Up & Down) | mm | 3 |
Front table tilt angle | degree | 0° to 45° |
Maximum setting temperature | °C | 180° |
Compressed air requirement | hp/kg/cm2 | 0.5 / 5 - 7 |
Heating element | kw | 1.5 |
45° Tape groove motor | kw | 0.73 |
Electric motor | kw | 0.37 (415V, 3ø) |
Power supply | voltage / ø | 415V , 3ø |
Total Power | hp | 3.5 |
Machine dimension (L x B x H) | mm | 2150 x 1100 x 1080 |
Approx. net weight | kg | 330 |
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The J-3045.in is designed to handle PVC, ABS, and veneer materials for edge banding on straight, curved, and 45° panels.
The pneumatic cutting system allows precise pre-defined cuts of edge banding material, improving accuracy and efficiency, especially for repetitive tasks.
The working table can tilt from 0° to 45° and features height adjustment up to 3 mm, providing flexibility for different workpiece applications.
