Double Side Surface Planer
Wood is in Our Blood , Wood is Our World

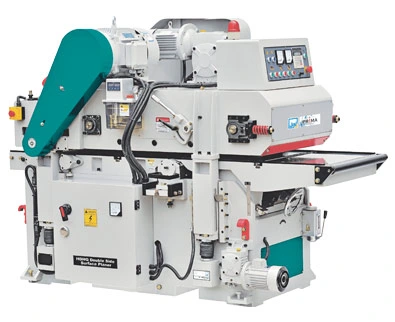

HDHQ Double Side Surface Planer
Powerful M/C with good stability & shock absorbing capacity, improved cutting quality & variable feed speed
- Powerful cutting capacity
- Good shock-absorb and stable Cast Iron quality
- Independent heavy duty motors for both Spiral cutter rolls
- Spiral cutter rolls improve cutting quality & speed
- Variable feed speed
- Numerical display unit for thickness setting
- Auto lubrication device keeps the machine always lubricated during working
- Model No.
- J-4430 (S), J-4630 (S)
Heavy Duty, High Quality with Spiral Cutter Roll

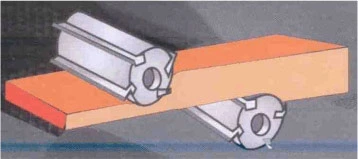

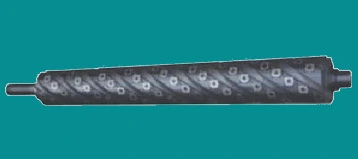

Top & Bottom 6 line spiral steel cutter roll as standard accessory
It can be conveniently pulled out on a support for easy replacing or setting the cutting blades
High quality hard chrome plating process gives smooth surface to table. Such wear resistance gives smooth level forever
Provided with drive feed roller structure, ensuring a stronger and smoother feeding equipped with overloading protection mechanism
Equipped with imported numerical display unit. The thickness processing can be controlled directly on control panel. The precision can be up to 0.1 mm and the feed speed can be adjusted
Equipped with pressure plate that guarantees smooth machining of short workpiece, increasing production output
The feeding unit can be adjusted up-wards and down-wards. The elevating range reaches 10 mm, and thus the processing precision can be enhanced with powerful feeding
Auto lubrication system circularly lubricate the entire machine, ensures efficient operation and increases service life of m/c
Specifications | Unit | J-4430 (S) | J-4630 (S) |
Working width | mm | 430 | 630 |
Working thickness | mm | 200 | 200 |
Min. working length | mm | 260 | 260 |
Max. cutting depth (Top cutter roll) | mm | 8 | 8 |
Max. cutting depth (Bottom cutter roll) | mm | 5 | 5 |
Cutter roll diameter | mm | 101Φ | 101Φ |
Spindle speed | rpm | 5000 | 5000 |
Variable feed speed | m/min | 0 - 16 | 0 - 16 |
Feed motor | m/min | 0 - 16 | 0 - 16 |
Feed motor | hp | 3 | 4 |
Top cutter roll motor | hp | 10 | 15 |
Bottom cutter roll motor | hp | 10 | 10 |
Feeding unit up-down motor | hp | 0.5 | 0.5 |
Total power | hp | 23.5 | 29.5 |
Note : S=Spiral Roll
- Model J-4430 & J-4630 without spiral roll also available
- Use Dust Colector with m/c for superior performance
