J-2103 + Triple Head Multi Boring Machine
The J-2103 + Triple Head Multi Boring Machine is engineered for precision and efficiency in high-volume furniture production, especially for modular, knock-down furniture. Equipped with one horizontal and two rotating vertical heads, this machine provides flexible and accurate boring solutions to meet a variety of production needs. Its semi-automatic operation and robust design make it an ideal choice for manufacturers focused on high productivity and quality.
The two vertical heads can slide away one by one on rolling guides from each other.
The aluminum fence has four reference stops that slide on support rollers for smooth positioning. This makes it easy to feed long work pieces.
Quick adjustment & easy setting of horizontal boring head unit. Boring depth can be also easily adjustable. Unit has pneumatically operated solid clamp for proper clamping of work piece at front end during boring process.
User friendly smart touch PLC control panel for Quick, precise & easy setting – up.
Key Features
Triple Boring Heads
Includes 1 horizontal and 2 rotating vertical boring heads with 21 spindles for executing precise holes in a line, perfect for wardrobe and side panel processing.
Quick Change Spindles
Easy-to-change spindles for minimal downtime and convenient head adjustments.
Robust Frame
Reinforced frame structure to support heavy-duty use and stable boring head operation.
Efficient Pneumatic Heads
Provides effective pressure for accurate boring, ensuring quality in every operation.
Adjustable Drilling Depth
Quick and straightforward settings for depth adjustments, suitable for various panel thicknesses.
Electro-Pneumatic Control Panel
Elegantly designed and easy-to-navigate control panel, simplifying setup and operation.
Auxiliary Support Frame
Equipped with flip-over brackets to handle long panels securely, providing added support for precision boring.
Foot Switch Operation
Enables hands-free control, enhancing user convenience and operational efficiency.
Salient Features and Functions
Sliding Vertical Heads
The two vertical heads can independently slide away from each other on rolling guides, offering flexibility in positioning and accommodating various panel sizes.
Smooth Positioning Aluminum Fence
The machine includes an aluminum fence with four reference stops, which slide on support rollers for smooth and precise positioning. This design allows for easy feeding of long workpieces, ensuring consistent and accurate boring.
Quick Adjustment of Horizontal Head
The horizontal boring head unit is easily adjustable for quick setup, and boring depth settings can be fine-tuned effortlessly. The unit features a pneumatically operated solid clamp for secure front-end clamping of the workpiece during boring.
Smart Touch PLC Control Panel
The user-friendly smart touch PLC control panel allows for quick, precise, and straightforward setup, enabling seamless operation for maximum productivity.
Special Features
Triple Head Configuration
Enhances versatility and productivity, allowing for multiple applications in one setup.
Precision and Durability
Strengthened frame and quality components ensure long-term, accurate performance.
User-Friendly Control
Intuitive PLC control panel and easy settings make operation and adjustments hassle-free.
Ideal for Modular Furniture
Specifically designed to meet the demands of knock-down modular furniture manufacturing.
Convenient Operation
Foot switch operation and auxiliary frame support provide ease of use and handling for larger panels.
Model No | Unit | J-2103 + |
Max. working thickness | mm | 60 |
Max. size of workpiece | mm | 1850 x 640 |
No. of spindle head | no's | Three |
No. of spindles per head | no's | 21 |
Total spindles | no's | 21 + 21 + 21 = 63 |
Minimum center distance between 2 vertical heads | mm | 150 |
Maximum center distance between 2 vertical heads | mm | 1650 |
Shank diameter of drill | mm | 10 |
Drilling depth | mm | 0 - 50 |
Air pressure required | kg/cm2 | 6 to 7 |
Elect. Motor / Total Power | no/hp | 3 x 2 = 6 |
Machine Dimensions (L x B x H) | mm | 3000 x 3050 x 1500 |
Approx. net weight | kg | 900 |

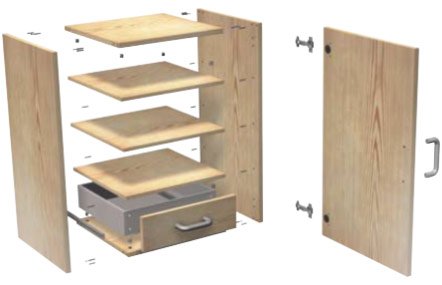

Machining Example
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The J-2103 + is designed to handle a wide range of panels, especially those used in knock-down modular furniture. Its adjustable heads and sturdy frame allow for versatile application across various panel types and sizes.
Yes, the machine offers quick and easy settings for regulating drilling depth, making it adaptable to different panel thicknesses and specific application requirements.
The J-2103 + includes a pneumatically operated solid clamp that securely holds the workpiece at the front end, ensuring stability and precision throughout the boring process.
