OptiDrill 2.6 Six Head Boring Machine
Engineered for large-scale production, the OptiDrill 2.6 Six Head Boring Machine is designed for high precision, efficiency, and durability. Ideal for large-scale manufacturers, this machine simplifies complex boring tasks with exceptional accuracy and ease, ensuring a smooth workflow with minimal setup time.
Product Description
The OptiDrill 2.6 features a robust structure suited to the demands of high-production environments. Equipped with four vertical and two horizontal boring head units, it allows for seamless line and panel matching bore operations. Its strengthened frame, heavy-duty guides, and user-friendly controls make it a powerful solution for demanding applications, enabling high-quality, burr-free boring across a wide variety of woodworking projects.
Length wise movement of heavy duty precision vertical boring heads on heavy linear rolling guides for a prompt & easy positioning with digital readout.
The all four vertical heads can slide away from each other depending on the center distance required between them. They can also be rotated by 90° giving more locational positioning.
The Aluminum fence with support rollers has four reference stops that slides smoothly for smooth positioning. This makes it easy to feed long workpieces. Second vertical head assembly has also reference stopper for perfect side position alignment of longer workpiece.

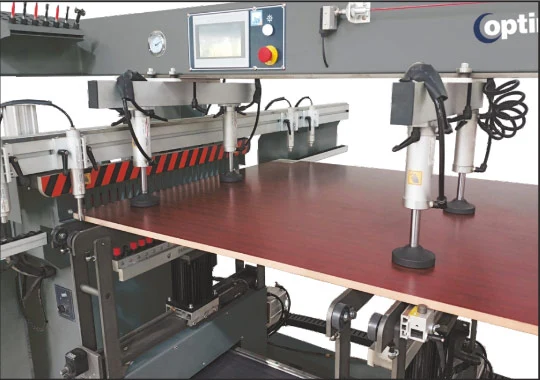

Quick adjustment & easy setting of horizontal boring head unit. Boring depth can be also easily adjustable. Unit has pneumatically operated solid clamp for proper clamping of work piece at front end during boring process.
User friendly Smart Touch PLC Control Panel.
Key Features
Heavy-Duty Frame
Built to withstand rigorous conditions, providing stability and durability for precise boring.
Flexible Boring Units
Includes four vertical and two horizontal boring heads that can be positioned and rotated 90° for versatile hole configurations, making it ideal for both central and side bores.
Digital Readouts
Vertical units slide on heavy-duty rolling guides with digital readouts, enabling accurate and quick positioning for consistent results.
Aluminum Fence System
Equipped with four smooth-sliding reference stops, allowing easy alignment and feeding of long workpieces, with additional reference stoppers for exact positioning.
Quick-Adjust Horizontal Boring Head
Easy horizontal head adjustments and depth control settings with a pneumatic clamp system ensure stability during the boring process.
Smart Touch PLC Control Panel
An intuitive interface for seamless operation, accessible adjustments, and control over all major functions.
Special Features
Noise Reduction
Cast iron boring heads reduce noise, ensuring a quieter operation in high-production settings.
Adjustable Heads
The vertical heads can slide and rotate independently for custom bore spacing, providing a versatile range of applications.
Low Maintenance & Cost-Efficient
Designed with reliable electronic parts from internationally renowned brands, ensuring longevity, with easy-to-access, cost-effective spares.
Model | Unit | OptiDrill 2.6 |
Maximum working thickness | mm | 60 |
Maximum size of work piece | mm | 2500 x 640 |
Number of spindle head | no. | Six |
Number of spindle head | no. | 21 |
Total spindles | nos. | 21*6 = 126 |
Shank diameter of drill | mm | 10 |
Spindle rotation speed | rpm | 2800 |
Maximum drilling diameter | mm | 32 |
Drilling depth | mm | 0 ~ 50 |
Compressed air required | Kg / cm² | 6 to 8 |
Electric motor - 3 phase | hp | 6 no's x 2 hp = 12 |
Machine dimension (L x B x H) | mm | 4400 x 3050 x 1650 |
Approx. net weight | kg | 1700 |
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
Yes, the machine is designed with a supportive aluminum fence system and reference stops for smooth handling of long workpieces, ensuring accurate alignment.
The boring units offer digital readouts for precise positioning. The heads can slide and rotate 90°, accommodating both side and central holes in a single cycle.
Absolutely, the OptiDrill 2.6’s high-speed, precision boring capabilities and user-friendly controls make it ideal for high-output environments.
The OptiDrill 2.6 is low-maintenance, designed with durable components and easily available spare parts, backed by robust service support for long-term use.
