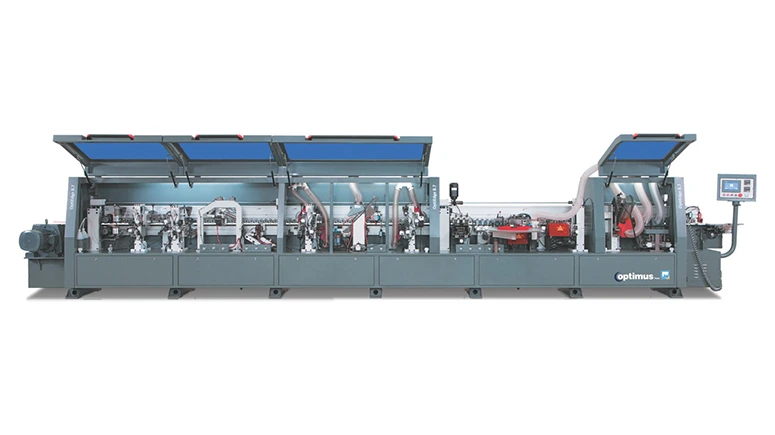

OptiEdge 8.7 High-Speed Auto Edge Bander
The OptiEdge 8.7 High-Speed Auto Edge Bander is an advanced machine tailored for efficient 45° and 90° edge banding operations, including round cornering. Engineered for high-speed, precision edge banding, the OptiEdge 8.7 supports both straight and beveled edge finishing, making it ideal for high-volume manufacturing with versatile edge banding needs.
Product Description
Built to meet high-production requirements, the OptiEdge 8.7 provides streamlined 45° and 90° edge banding for panels, with a smooth, single-pass operation. This machine combines high-speed performance with a user-friendly interface for seamless operations, ensuring precise gluing, trimming, and rounding for clean, professional finishes on every panel. Equipped with heavy-duty components, robust feed systems, and an intuitive Smart Touch PLC panel, the OptiEdge 8.7 is the ultimate solution for professional-grade edge banding.
Pre – Milling : An optimal unit for panel edge pre-milling with two heavy duty high frequency motors supplied with set of diamond cutters, as standard supply with machine.
45° Milling : An optimal unit to make panel edge 45°, with 7.5 hp heavy duty high frequency motor in single pass.
45° Edge Tape Grooving : An optimal unit for edge tape grooving to make proper banding with panel with diamond groove cutter, as standard supply with machine.
The Feed Track : Robust feed chain & conveyor system with heavy duty gearbox gives straight movement effective pressure on small / big panels.
45° Gluing, Banding & Edge Cutting : Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with heavy duty pressure rollers.There are three groups of pressure rollers for proper adhesion on inclined edge. Heavy duty knife with pneumatic pressure cuts the edge banding materials smoothly up to 25 mm height & 2 mm thickness.
90° Gluing, Banding & Edge Cutting : Glue spreading roller provides precise & consistent glue application.Perfect adhesion to the applied edge with 4 heavy duty pressure rollers.Heavy duty knife with pneumatic pressure cuts the edge banding materials smoothly up to 60 mm height & 3 mm thickness.
45° Trimming : Compact and powerful high frequency two motors guarantees perfect finish on edge. High level finishing thanks to the sturdy & heavy duty structure which is free of any vibration. Trimmer cutter trims the perfect finishing on straight edge of panel.
End Cutting : Compact and powerful high frequency two motors guarantees perfect finish on edge, sliding on two prismatic heavy guideways with recirculation ball bearings.
90° Fine Trimming : Compact and powerful high frequency two motors guarantees perfect finish on edge. High level finishing thanks to the sturdy & heavy duty structure which is free of any vibration. Trimmer 2R cutter trims the perfect finishing on straight edge of panel.
2 Motor Round Cornerning : Compact and powerful high frequency two motor round cornering unit guarantees perfect finish on edge, sliding on two heavy prismatic guideways with recirculation ball bearings. Trimmer 2R cutter for PVC/ABS gives perfect rounding on edges of straight, chamfered & post formed panel.
90° Edge Scraping : Gives the best finishing touch to the PVC/ABS edges, leaving no trimming marks on the panel. Unit complete with rotating copiers.
45° Flat Scrapping : Gives the best finishing touch to the PVC/ABS edges, leaving no trimming marks on the panel. Unit complete with rotating copiers.
Cleaning Agent : In order to prevent glue to adhere on panel, cleaning liquid is sprayed to lower & upper edge surface of the panel. Buffing : Perfect straight & degree edge banding finishing by unit. Independently adjustable buffing wheels, for cleaning & polishing of the panel. It can be adjustable at a particular angle to maximize its effect for perfect finishing of workpiece & increase the life of buffing wheels.
Control Panel : Easy accessible user friendly Smart Touch PLC control panel positioned at machine in-feed, for easy & quick operations.
Pressure Beam Up-down : Motorized up-down movement of pressure beam for easy thickness setting for quick operation from control panel.
Auto Lubrication : Automatic lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.
Air pressure safety tanks are provided to ensure non-dropping of air during process.
Key Features
Single-Pass 45° Edge Formation
Efficiently forms 45° edges from straight panels with a high-speed process, enhancing productivity up to 25 meters per minute.
Touch-Control 45° Edge Banding
Simplify edge adjustments using the Smart Touch PLC panel for quick switching without manual adjustments.
Diamond-Cutter Pre-Milling
Equipped with twin heavy-duty motors and diamond cutters for precise panel preparation.
Dual Glue Tanks
Twin glue tanks with consistent glue application ensure optimal adhesion on both 45° and 90° edges.
Motorized Pressure Beam
Adjustable up-down movement of the pressure beam for quick thickness settings, enhancing setup efficiency.
Advanced Feed System
Strong feed chain and conveyor system with heavy-duty gearbox, providing effective pressure for both large and small panels.
Auto Lubrication System
Automatic lubrication circulates to essential parts, reducing downtime and extending component life.
Smart Touch PLC Control Panel
Easily accessible control panel positioned at the machine's infeed, streamlining operations and reducing setup times.
Special Features
Dual Edge Banding and Gluing (45° & 90°)
Independent glue tanks and dedicated pressure rollers for precise 45° and 90° edge banding with seamless adhesion.
Multiple Trimming and Finishing Units
Includes units for 2x milling, 2x trimming, 2x scraping, and buffing to achieve a polished, professional finish on every edge.
Powerful Round Cornering
High-frequency motors with prismatic guideways for smooth and precise round cornering on PVC/ABS edges.
High-Frequency Motors for Trimming and Finishing
High-powered trimming motors for fine-tuned finishing, ensuring a vibration-free and perfectly polished edge.
Safety Air Tank
Air pressure safety tanks are included to maintain consistent pressure, preventing interruptions during the edge banding process.
Model | Unit | OptiEdge 8.7 |
45° & 90° | ||
Work piece thickness range | ||
- Inclined 45° edge | mm | 10 - 25 |
Cedric Kelly | Senior Developer | Remote |
- Full straight 90° edge | mm | 10 - 60 |
Work piece size - Width x Length | ||
- Inclined 45° edge | mm | 120 - 150 |
- Full straight 90° edge | mm | 80 - 120 |
Edge banding thickness for PVC & ABS in coil form | ||
- Inclined 45° edge | mm | 0.4 - 2.0 |
- Full straight 90° edge | mm | 0.4 - 3.0 |
Work piece feeding speed | ||
- Inclined 45° edge | m/min | 15 |
- Full straight 90° edge | m/min | 15 - 20 - 25 |
Pre-milling motor power | no/hp | 2 x 3 |
45° milling motor power | no/hp | 1 x 7.5 |
End cutting motor power | no/hp | 2 x 0.5 |
90° & 45° Trimming motor power | no/hp | 4 x 1 |
Round cornering motor power | no/hp | 2 x 0.5 |
Buffing motor power | no/hp | 2 x 0.5 |
Air pressure required | kg/cm2 | 6 to 8 |
Working temperature range | °C | 180 - 200 |
Glue pot capacity | kg | 2.0 |
Total power | hp | 40.5 |
Machine dimension (L x B x H) | mm | 9300 x 1530 x 1600 |
Approx. net weight | kg | 3000 |
Machining Examples
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The OptiEdge 8.7 is ideal for manufacturers requiring efficient and precise 45° and 90° edge banding, with added functionality for round cornering on PVC/ABS edges.
The motorized rip fence offers high accuracy with a tolerance of ±0.1 mm.
Absolutely! The scoring blade is easily adjustable from the front side of the machine, enabling quick and precise changes.
