Spindle Moulder J-3400

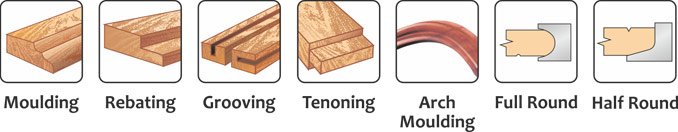

The Spindle Moulder J-3400.in is crafted to bring precision and versatility to your woodworking projects, making it ideal for detailed moulding, shaping, and edge-work tasks. With robust construction and carefully engineered components, this spindle moulder is designed for easy operation, minimal maintenance, and high productivity. The optional auto feeder accessory further enhances productivity, allowing seamless, hands-free feeding for enhanced accuracy and speed.

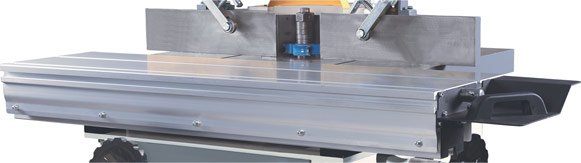

1300 mm hard anodized sliding table is precision for easy functioning.
Tenoning Clamp : A mitre gauge with heavy duty wood clamp for tenoning work & aluminum reference fence with flip over stop.
Auto Feeder : (Optional) For auto feeding of workpiece & can be bought any time separately
Key Features
Precision Sliding Table
Features a hard-anodized aluminum sliding table measuring 1300 x 360 mm, engineered for smooth and precise operation to enhance accuracy in cutting and shaping.
Balanced, Vibration-Free Spindle
The spindle, ground and electronically balanced, provides stable and vibration-free performance, contributing to a flawless finish on workpieces.
Quick Spindle Locking System
Equipped with a user-friendly spindle locking mechanism that allows quick and easy adjustments for improved workflow efficiency.
Dual Speed Options
Offers two spindle speeds, 6000 and 8000 rpm, to accommodate different tool sizes and material requirements, optimizing the finish quality.
Low Maintenance Drive System
The spindle is powered through V-belts and housed in sealed bearings, ensuring longevity with minimal upkeep.
Efficient Dust Management
Integrated dust chute on the fence assembly aids in maintaining a clean workspace, facilitating smooth operation and quick clean-up.
Special Features
5-Year Warranty on Sliding Table
Designed for durability, the sliding table is backed by a 5-year warranty, assuring long-term precision and reliability.
Heavy-Duty Reference Fence
Includes an adjustable aluminum side fence with infeed and outfeed bearing supports, ensuring stability and accuracy during complex operations.
Optional Tenoning Clamp
Comes with a robust mitre gauge and clamp for tenoning, along with a flip-over aluminum reference fence, adding versatility for custom joinery.
Optional Auto Feeder
Available in 3-roller and 4-roller configurations with 8 adjustable speed settings, powered by a 1 hp 3-phase motor, offering efficient workpiece feeding and increased production rate.
Model No | Unit | J-3400.in |
Fix table size | mm | 865 x 550 |
Sliding table length | mm | 1300 |
Sliding table width | mm | 360 |
Spindle diameter | mm | 30 |
Up / Down movement of spindle | mm | 100 |
Arbor tilt | degree | 45° |
Spindle speed | rpm | 6000 / 8000 |
Max. molding block width | mm | 100 |
Dust extraction port diameter | mm | 100 |
Electrical motor-3 phase | hp | 5 |
Machine dimensions (L x B x H) | mm | 1500 x 1300 x 1200 |
Approx. net weight | kg | 400 |

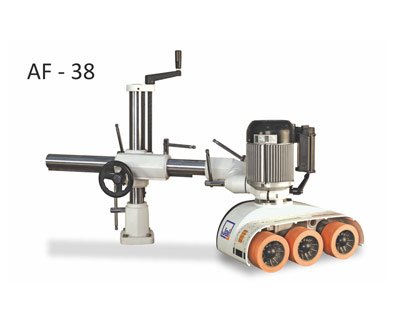

Auto Feeder (Heavy duty)
Setting the available speed is a combination of motor speed (Pole change by switch, R/F) & gear setting. Speed is very important to achieve efficiency & quality of workpiece.
- 3 Rollers
- 8 speed
- 1 hp 3 - phase motor
- 4 Rollers
- 8 speed
- 1 hp 3 - phase motor
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
Yes, the sliding table is constructed from hard-anodized aluminum for durability and precision and includes a 5-year warranty.
Yes, the optional tenoning clamp with a mitre gauge and flip-over fence makes the J-3400.in ideal for accurate tenoning work.
