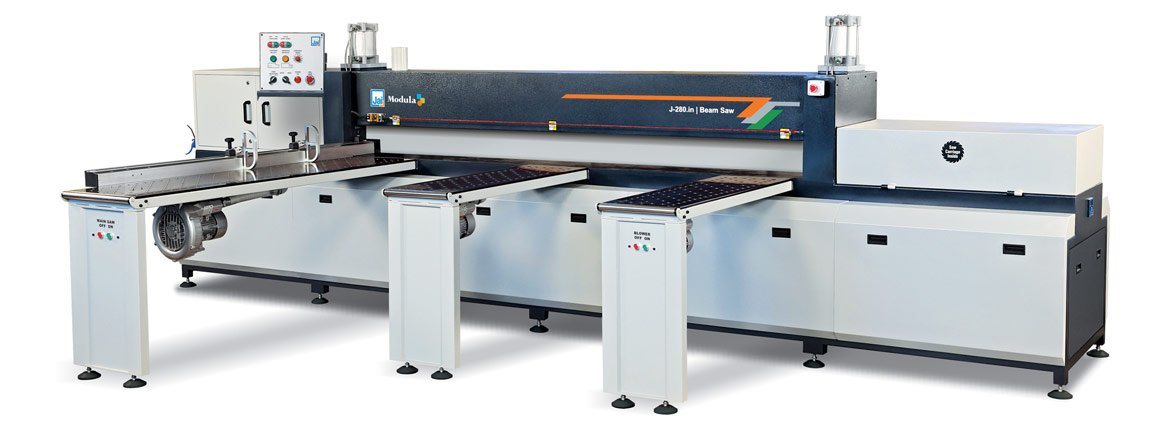

Beam Saw J-280.in (Semi Auto) with Infeed Air Floating Table
The J-280.in Beam Saw is designed for high-speed and precise panel cutting. With a maximum cutting thickness of 60 mm, this semi-automatic machine features an infeed air floating table for easy material handling. Its advanced saw carriage, pneumatic clamping beam, and variable feed speed motor make it an ideal solution for panel processing applications.
- Model No.
- J-280.in
Three front air floating tables with blowers for easy & smooth feeding movement of work piece.
Powerful, precise and efficient high speed panel cutting.
Advanced saw carriage :With high feed rate driven by rack / pinion and guided on hard guide rods that ensures high cutting accuracy. Saw carriage Drive motor has variable feed speed for different applications.
Easy & fast changing of main saw and scoring saw blades.
Easy accessible user friendly control panel for easy & quick operations.
Optional : Digital Read Out (DRO-F) Fence is equipped with DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm.
Features
Maximum Cutting Thickness of 60 mm – Handles various panel materials efficiently.
Pneumatic Clamping Beam – Ensures uniform holding with synchronized cylinder actuation.
Advanced Saw Carriage – Driven by a rack and pinion system for precise, high-speed cutting.
Variable Feed Speed Motor – Adjustable for different cutting applications.
Infeed Air Floating Table – Equipped with three air floating tables for easy workpiece movement.
User-Friendly Control Panel – Ensures quick and easy operation.
Fast Blade Replacement – Allows quick changes for the main saw and scoring saw blades.
Optional Digital Readout (DRO-F) – Provides precision accuracy of ±0.1 mm for job length settings.
Special Features (USPs)
Semi-Automatic Operation – Reduces manual effort while ensuring high accuracy.
Efficient Material Handling – Infeed air floating table minimizes resistance for smooth workpiece movement.
Powerful Cutting Performance – 10 HP main saw motor & 1 HP saw carriage motor ensure efficient cutting.
Precise & High-Speed Saw Carriage – Driven by a rack and pinion system with variable feed speed.
User-Friendly & Time-Saving – Quick blade replacement & accessible control panel for effortless operation.
J-280.in - Specifications
| Specification | Unit | J-280.in |
|---|---|---|
| Capacity | ||
| Maximum Length of Cut | mm | 2800 |
| Maximum Depth of Cut | mm | 60 |
| Main Saw Unit | ||
| Maximum Blade Diameter | mm | 300 |
| Arbor Diameter | mm | 60 |
| RPM of Main Saw Blade | rpm | 5000 |
| Main Saw Unit Motor | hp | 10 |
| Scoring Saw Unit | ||
| Maximum Blade Diameter | mm | 150 |
| Arbor Diameter | mm | 45 |
| RPM of Scoring Saw Blade | rpm | 7500 |
| Saw Carriage | ||
| Feed Forward Speed | m/min | 10 to 30 |
| Retract Speed | m/min | 30 |
| Saw Carriage Motor | hp | 1 |
| Other Specifications | ||
| Diameter of Dust Extraction Port | mm | 100 |
| Compressed Air Requirement | kg/cm² | 6 to 7 |
| Floating Table Blower Total Motors | hp | 2 |
| Total Power | hp | 13 |
| Machine Dimension (L x B x H) | mm | 5160 x 4110 x 1650 |
| Approx. Net Weight | kg | 2500 |
Standard Accessories :-
Main saw blade & scoring saw blade
Pneumatic clamping beam system
Saw carriage with variable speed motor
Three front air floating tables with blowers
R/F switch & machine manual
📌 Optional Accessory: Digital Readout (DRO-F) for precision job length setting.
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The maximum cutting length is 2800 mm, and the maximum cutting thickness is 60 mm.
The three air floating tables reduce friction, allowing easy and smooth movement of workpieces.
Yes, the variable feed speed motor allows speed adjustments between 10 to 30 m/min.
Yes, the optional Digital Readout (DRO-F) displays job length digitally, allowing ±0.1 mm precision accuracy.
The clamping beam holds the workpiece firmly, ensuring stability and precision during cutting.
