Edge Bander J-5750PRc.in
The Edge Bander J-5750PRc.in is an advanced, high-performance edge banding machine designed for precise application of edge banding materials. Engineered for durability, it ensures seamless and accurate edge finishing on straight panels, making it ideal for modern woodworking applications. With a robust feed chain and conveyor system, high-frequency motors, and an intuitive Smart Touch PLC control panel, this machine offers superior efficiency and convenience.
Models
- J-5750PRc.in
- J-5750Rc.in (without Pre-Milling)
Robust feed chain & conveyor system with German gearbox gives straight movement & effective pressure on small / big panels.
Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with 2 heavy duty pressure rollers actuated by pneumatic cylinders.
Compact and powerful high frequency two independent motors guarantees best finish on edge, sliding on two prismatic guideways with recirculation ball bearings.
Compact and powerful high frequency two independent motors guarantees best finish on edge, sliding on two prismatic guideways with recirculation ball bearings.

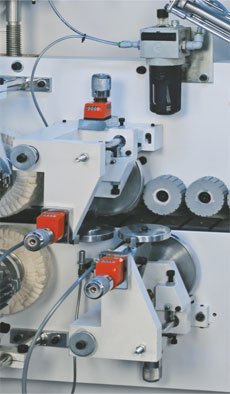

Gives the best finishing touch to the PVC/ABS edges , leaving no trimming marks on the panel. Unit complete with rotating copiers.

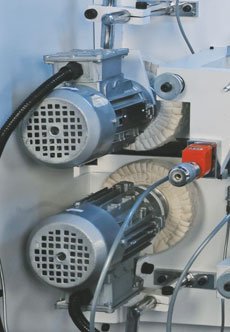

Buffing : Independently adjustable buffing wheels, for cleaning & polishing of the panel edges.
Control Panel : Easy accessible user friendly control panel positioned at machine in-feed, for easy & quick operations.
Salient Features
Heavy-Duty Construction – Built for Indian working conditions to ensure long-lasting performance.
German Gearbox – Smooth and powerful drive with long-life synthetic lubrication.
Pre-Milling Unit – Equipped with diamond cutters for precise pre-milling, ensuring a perfect joint line.
Three Pressure Rollers – Pneumatic-actuated for firm and even pressure application.
Dual Feeding Speed – 11 m/min for PVC/ABS and 6 m/min for wooden strips.
Key Features
Overall Meter Run (OMR) – Displays the total edge band tape usage.
Project Meter Run (PMR) – Helps track usage for individual projects.
Stand-By Mode – Automatic glue temperature lowering during machine idle periods.
Smart Touch PLC Panel – Positioned at the infeed for ease of operation and minimal setup time.
Low Maintenance – Cost-effective, easily available spares, and best-in-class service support.
Model Specifications
| Specification | J-5750Rc.in | J-5750PRc.in |
|---|---|---|
| Work piece thickness range (mm) | 10 - 50 | 10 - 50 |
| Minimum work piece width (mm) | 120 | 120 |
| Minimum work piece length (mm) | 150 | 150 |
| Edge banding thickness - For PVC & ABS in coil form (mm) | 0.4 - 3.0 | 0.4 - 3.0 |
| Edge banding thickness - For Wooden Strip form (mm) | Up to 10 | Up to 10 |
| Dual work piece feed - For PVC & ABS (m/min) | 11 | 11 |
| Dual work piece feed - For wooden strip (m/min) | 6 | 6 |
| Pre-milling motor power (no/hp) | n/a | 2 x 2 |
| End cutting motor power (no/hp) | 2 x 0.5 | 2 x 0.5 |
| Fine Trimming motor power (no/hp) | 2 x 1 | 2 x 1 |
| Round Cornering motor power (no/hp) | 2 x 1 | 2 x 1 |
| Buffing motor power (no/hp) | 2 x 0.5 | 2 x 0.5 |
| Air pressure required (kg/cm²) | 6 to 7 | 6 to 7 |
| Working temperature range (°C) | 180 - 200 | 180 - 200 |
| Glue pot capacity (kg) | 2 | 2 |
| Total power (hp) | 11 | 15 |
| Machine dimension (L x B x H) (mm) | 4700 x 950 x 1485 | 5200 x 950 x 1485 |
| Approx net weight (kg) | 1600 | 1750 |
Standard Accessories
- Pre-Milling Unit with diamond cutters (only in J-5750PRc.in)
- Heavy-duty pressure rollers for superior adhesion
- Pneumatic end cutting knife for precise cutting of edge banding materials
- High-frequency motors with prismatic guideways
- Rotating copiers for edge scraping
- Anti-adhesion liquid system to prevent glue buildup
- Independent buffing wheels for edge polishing
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The J-5750PRc.in model includes a Pre-Milling Unit with diamond cutters to prepare the panel edges for enhanced edge banding quality, whereas the J-5750Rc.in does not have this feature.
This machine supports PVC/ABS edge banding up to 3.0mm and wooden strips up to 10mm.
The Smart Touch PLC panel is positioned at the machine infeed, making it easily accessible and user-friendly, allowing quick setup and operation adjustments.
Yes, it offers two-speed settings: 11 m/min for PVC/ABS and 6 m/min for wooden strips.
The Stand-By Mode automatically lowers the glue temperature when the machine is temporarily not in use, helping to save energy and extend glue life.
