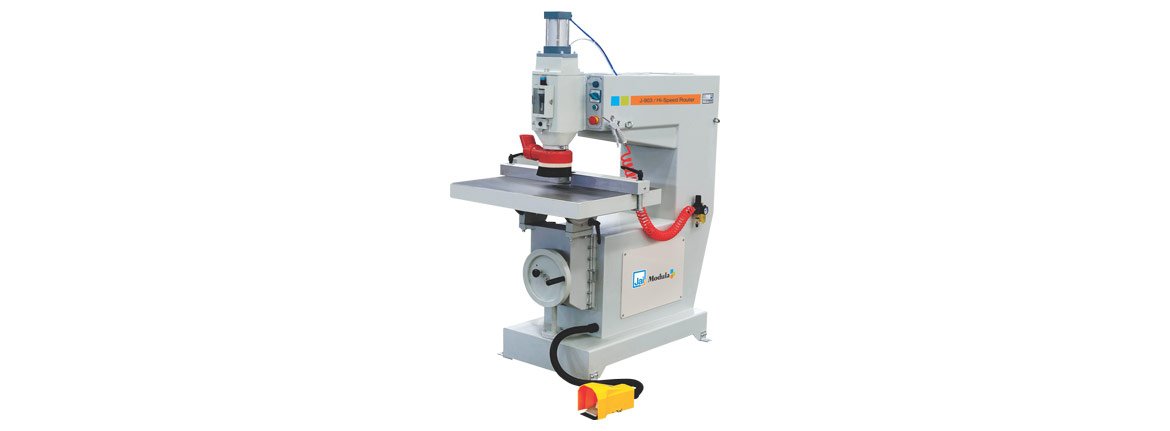

High-Speed Router J-903 (Pneumatic)
The High-Speed Router J-903 manufactured by Pilot Machinery is perfect for the modern needs of woodworking. This pneumatic router has all the features precision, speed, and durability that provides a wide operation such as routing, moulding, dovetailing, grooving, mortising, tenoning, rebating. Therefore, with these sturdy build-up and modernity, clean cut at high speeds is guaranteed, producing uniform and high-quality output especially for professional clients who demand excellent outputs.
Up & down movement of work table to set work piece thickness
Actuation of spindle pneumatically, so the depth will be the same for all different design in same work piece.
Spindle drive assembly easily accessible for belt tension & maintenance
Engraving can be done on work piece by copying the design of master jig with the use of guide pin.
Features
- High-Speed Production Optimized
It offers clean, quick cuts and is suitable for high-speed woodworking operations. - Pneumatic Advanced Spindle Actuation
Offers uniform depth of detail designs to the various sections of the same workpiece. - Balanced Spindles with High-Speed Bearings
Ensure a vibration-free and smooth operation with precision cutting for long tool life. - Pedal-Controlled Spindle Travel
It simplifies work operations and also gives better control in routing jobs. - Up/Down Work Table Movement
Allows easy adjustment according to the variation in thicknesses of workpieces. - Large Tilt Table with Extended Throat Clearance
Accommodates angular operations with up to a 45° tilt and a 750mm throat clearance. - Rigid, Vibration-Free Construction
Base design minimizes vibrations for stability and accuracy during operations. - Capable of Engraving Workpieces
Using a guide pin to replicate master jig designs. - Accessible Spindle Drive Assembly
Allows ease of adjusting belt tension for optimal performance and maintenance.Special Features
- Pneumatic Spindle Actuation for Consistent Depth Control
Spindle actuation enables uniform depth in repeating designs on the same workpiece. - Tiltable Work Table
Work table tilts up to 45° that allows angular routing and moulding in accurate. - Rapid and Simple Adjustments
Spindle travel control and the movement of table for smooth running and adjustment. - Strong and Rugged Design
Heavy base with high-speed bearings so that the machine runs for a long time with least vibrations. - Versatile Operation
Can perform several operations such as dovetailing, grooving, and rebating to ensure versatile operation.
J-903 - Specifications
| Specification | Details |
|---|---|
| Work Table Size | 800 x 600 mm |
| Max. Cutting Thickness | 60 mm |
| Lifting Travel of Work Table | 130 mm |
| Maximum Table Tilt | 45° |
| Throat Clearance | 750 mm |
| Spindle Speed | 8000 / 16000 rpm |
| Guide Pin Diameter | 6 & 12.7 mm |
| Shank Diameter of Cutter | 12 mm |
| Spindle Actuation | Pneumatic |
| Compressed Air Requirement | 1.5 hp / 7.0 kg/cm² |
| Total Power | 4 hp / 1400 & 2800 rpm |
| Machine Dimension (L x B x H) | 1500 x 900 x 1750 mm |
| Approx. Net Weight | 500 kg |
Standard Accessories :-
- R/F switch for operational safety
- Guide pins of 6mm and 12.7mm diameters
- Motor fixing plate and motor pulley
- Toolkit and machine manual
- High-quality flat belts for smooth spindle operation
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The router can route, mould, dovetail, groove, mortise, tenon, rebate, and engrave with speed and accuracy.
The work table is tiltable to 45°, hence useful for angular moulding and routing.
The pneumatic spindle guarantees consistent patterns at the same depth, hence saves time to set and enhances precision.
The J-903 has a great throat clearance of 750mm, hence fitting large workpieces.
Yes, J-903 is designed to have mass production at a very high speed. That is due to the smooth cuts with absolute accuracy in minimum time possible.
