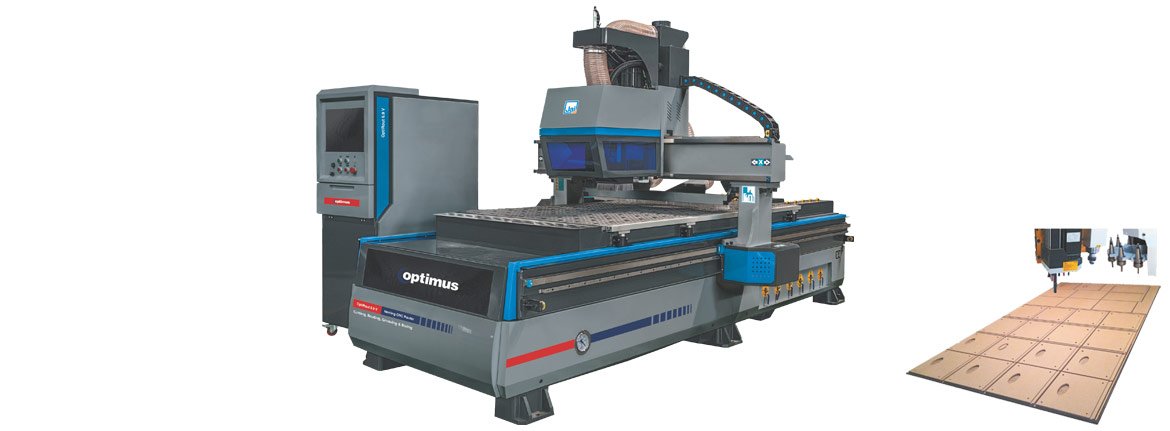

OptiRout 6.9 V – Nesting CNC Router Cutting, Routing, Grooving & Boring
OptiRout 6.9 V from Pilot Machinery is a robust and versatile Nesting CNC Router designed for high-speed panel processing with seamless integration of cutting, grooving, routing, and boring operations. Built for efficiency, this heavy-duty machine is ideal for modern woodworking units that require precision, speed, and reduced manpower. With dual 6 kW spindles and a 9V boring head, it ensures maximum productivity with consistent quality output, all while minimizing tooling and maintenance costs.
- Model No.
- OptiRout 6.9 V
Features
- Heavy-duty gantry structure supports nesting, cutting, grooving, routing, and boring in a single operation.
- Dual 6 kW air-cooled spindle system for high-efficiency multi-tasking.
- 9V vertical spindle boring head (5+4) for precision drilling operations.
- Equipped with high-performance WEIHONG control system with servo motors and Shimpo reducers.
- Rack and pinion gear drive for X & Y axis and ball screw drive for Z axis ensure long-lasting accuracy.
- Air-type vacuum table with double-layer nesting surface for excellent panel hold.
- Heavy-duty linear guides (30 mm on X & Y, 25 mm on Z) for stability and precision.
- Automatic lubrication system ensures smooth movement and increases machine life.
- Reference stops and dust cleaning system support accurate alignment and clean operations.
- Compatible with ArtCAM and AlphaCAM software; accepts standard G-code commands.
Precision 9V Spindle Vertical Boring Head for drilling
Heavy duty 2 separate Spindle 6 kw with Boring Head
Heavy Duty Linear Rail & rack & pinion for high cutting speed and accuracy
Heavy Duty Servo Motors with Shimpo Reducer
Bigger safety spindle covers for effective dust collecting and safety
All electrical & electronics components are well known international reputed brands for trouble free performance.
Double layer Nesting table for an efficient and secure hold of work piece
Effective dust cleaning system support rollers
Reference stops for proper alignment of panel
Automatic lubrication system for smooth all three axis linear guide
Nesting CNC Router Cutting - OptiRout 6.9 V
| Specification | OptiRout 6.9 V |
|---|---|
| X - Y - Z Axis working area | 1300 x 2500 x 200 mm |
| Resolutions | 0.0025 mm |
| X - Y movement | Rack & pinion gear drive / Taiwan |
| Z movement | Heavy ball screw / TBI |
| Guide | Linear guide 30 mm (X & Y), 25 mm (Z) - Taiwan |
| Spindle & boring head | 6 kW x 2, Air cooled spindle / 18000 rpm, 9V Boring head (5 + 4) |
| Boring head power | 1.5 kW |
| Controller & drive motors | WEIHONG with Servo motors & Shimpo reducer |
| Working voltage | AC 380 V / 50 Hz, 3 Ø |
| Command code | G code |
| Collet type & size | ER32 (6, 8 mm) |
| Compatible software | ArtCam, AlfaCam |
| Oil lubrication system | Standard |
| Vacuum table & pump | Standard with 7.5 kW air type pump |
| Machine dimension (L x B x H) | 4200 x 3400 x 2450 mm |
| Approx. net weight | 2500 kg |
Standard Accessories :-
Dual 6 kW Air-Cooled Spindles
9V Precision Vertical Boring Head
Vacuum Table with 7.5 kW Air Pump
Automatic Lubrication System

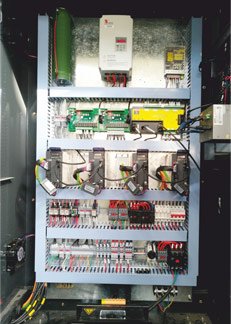

Control Panel with WEIHONG System
Heavy-duty Rack and Pinion Mechanism
Dust Collection Hood and Safety Covers
Optional Accessories
- LnU – Automatic Loading & Unloading System: Significantly increases productivity and reduces manual labor.
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The machine’s double-layer nesting table, powerful vacuum system, and advanced motion components ensure efficient and secure panel hold during complex nesting operations.
Yes, it is compatible with industry-standard software such as ArtCAM and AlphaCAM, and supports standard G-code.
Precision is guaranteed with linear rails, ball screw Z-axis, and the use of top-quality servo motors, reducers, and auto alignment stops.
Yes, with the optional LnU (Loading & Unloading) system and barcode scanning capabilities, automated production is achievable.
We offer nationwide service support, easy availability of spare parts, and comprehensive post-sales assistance for trouble-free operation.
