OptiEdge 5.5 P
The whole world of Panel Processing machines
OptiEdge 5.5 P - High Speed Auto Edge Bander
The OptiEdge 5.5 P – High Speed Auto Edge Bander is designed for precision, efficiency, and durability, making it an ideal solution for industrial edge banding needs. With its high feeding speed of up to 18 m/min, pre-milling capabilities, and user-friendly Smart Touch PLC control panel, this machine ensures seamless operations while delivering superior edge finishing. Its robust construction, reliable performance, and use of high-quality electronic and pneumatic components make it a perfect choice for high-volume production lines.
Key Features
High Speed Performance – Feeding speed up to 18 m/min for increased productivity.
Pre-Milling Unit – Equipped with diamond milling cutters for chip-free glue joints.
Smart Touch PLC Control Panel – Easy-access interface with corner rounding control.
Motorized Pressure Beam – Quick and effortless thickness adjustments.
Safety Air Tank – Prevents air pressure drops during operation.
Heavy Duty Prismatic Guideways – Ensures precision and long-lasting performance.
Automatic Lubrication System – Enhances efficiency and extends machine life.
Robust Feed Chain & Conveyor System – Provides effective pressure for optimal panel movement.
Standard Accessories
Pre-Milling Unit with diamond cutters (OptiEdge 5.5 P model only)
Glue spreading roller for precise application
Heavy-duty pressure rollers for superior adhesion
Pneumatically controlled edge cutting knife
Fine trimming unit with high-frequency motors
Round cornering unit with 2 high-frequency motors
Edge scraping unit for flawless finish
Buffing unit for smooth and polished edges
Automatic lubrication system
Safety air tank for uninterrupted operation
Motorized pressure beam with position indicator

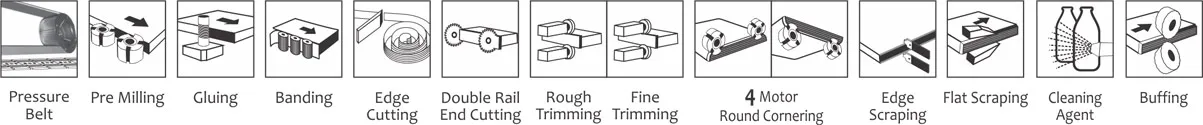

Special Features
Pre-Milling: Achieves clean and precise glue joints with high-frequency diamond cutters.
Gluing & Banding: Ensures strong adhesion with a heavy-duty glue application system.
End Cutting & Fine Trimming: Provides sharp and precise panel edge cuts.
Round Cornering: High-speed corner rounding for a smooth finish.
Edge Scraping & Buffing: Eliminates trimming marks and enhances edge polish.
Auto Lubrication: Increases component lifespan by circulating lubrication efficiently.
Smart Control Panel: User-friendly interface for easy machine control and settings adjustment.
Industrial Build Quality: Designed for long-lasting, trouble-free performance.
OptiEdge 5.5 & OptiEdge 5.5 P - Specifications
| Specification | OptiEdge 5.5 | OptiEdge 5.5 P |
|---|---|---|
| Work Piece Thickness Range | 12 - 50 mm | 12 - 50 mm |
| Minimum Work Piece Width | 80 mm | 80 mm |
| Minimum Work Piece Length | 120 mm | 120 mm |
| Edge Banding Thickness for PVC & ABS in Coil Form | 0.4 - 3.0 mm | 0.4 - 3.0 mm |
| Work Piece Feeding Speed | 18 m/min | 18 m/min |
| Pre-Milling Motor Power | N/A | 2 × 3 hp |
| Round Cornering Motor Power | 2 × 0.5 hp | 2 × 0.5 hp |
| Buffing Motor Power | 2 × 0.5 hp | 2 × 0.5 hp |
| Compressed Air Required | 6 to 8 kg/cm² | 6 to 8 kg/cm² |
| Working Temperature Range | 180 - 200 ºC | 180 - 200 ºC |
| Glue Pot Capacity | 11.33 kg | 2.0 kg |
| Total Power | 11.33 hp | 17.33 hp |
| Machine Dimension (L × B × H) | 5200 × 1200 × 1600 mm | 5800 × 1200 × 1600 mm |
| Approx. Net Weight | 1300 kg | 1500 kg |
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
A: The machine can handle edge banding thickness from 0.4 mm to 3.0 mm.
A: Yes, the OptiEdge 5.5 P model includes a pre-milling unit, while the OptiEdge 5.5 model does not.
A: The machine has a high feeding speed of up to 18 m/min.
A: The machine operates at a working temperature of 180-200°C, suitable for most industrial-grade edge banding adhesives.
