OptiRout 9.9 V (R-ATC) – Nesting CNC Router Cutting, Routing, Grooving & Boring with Auto Tool Changer

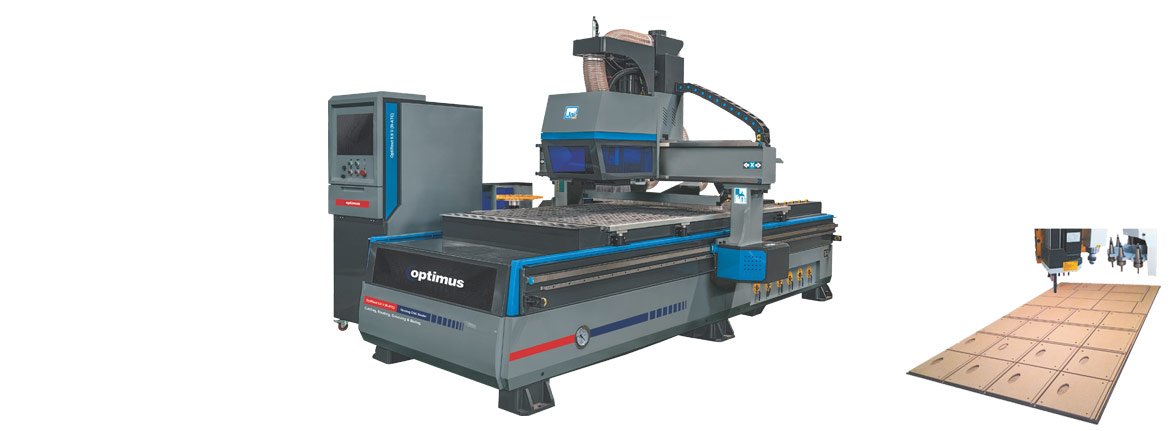

OptiRout 9.9 V (R-ATC) by Pilot Machinery is a next-generation Nesting CNC Router engineered for advanced panel processing needs. This machine brings unmatched efficiency to your operations with its rotary-type 12-position automatic tool changer, powerful 9 kW ATC spindle, and a precision vertical boring head (9V). Designed with a double-layer nesting table and supported by high-speed linear rails and servo systems, it ensures fast, accurate, and repeatable results with reduced manual intervention.
Also available: OptiRout 9.0 (L-ATC) – a linear ATC model without boring unit, perfect for routing-only operations.
- Model No.
OptiRout 9.9 V (R-ATC) – with boring head and rotary ATC
OptiRout 9.0 (L-ATC) – without boring head, linear ATC
Features
- 9 kW Air-Cooled ATC Spindle
- 12-Tool Rotary Tool Changer (OptiRout 9.9 V) / 8-Tool Linear (OptiRout 9.0)
- Precision 9V Boring Head (OptiRout 9.9 V only)
- Vacuum Table with 7.5 kW Air Pump
- WEIHONG Controller with Shimpo Reducers
- Automatic Lubrication System
- Dust Collection Hood & Safety Covers
- Reference Stops & Support Rollers
Precision 9V Spindle Vertical Boring Head for drilling
9 kw Heavy duty ATC Spindle
Heavy Duty Linear Rail & rack & pinion for high cutting speed and accuracy
Heavy Duty Servo Motors with Shimpo Reducer
Bigger safety spindle covers for effective dust collecting and safety
Rotary type 12 position auto tool changer reducing time
For Model: OptiRout 9.9V (R-ATC)
Linear type 8 position auto tool changer reducing time
(Model: OptiRout 9.0 (L-ATC)
Double layer Nesting table for an efficient and secure hold of work piece
Effective dust cleaning system support rollers
Reference stops for proper alignment of panel

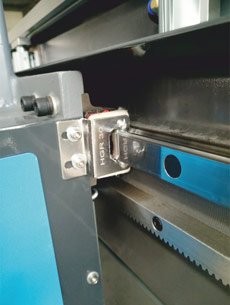

Automatic lubrication system for smooth all three axis linear guide
Model Specifications - OptiRout 9.0 (L-ATC) & 9.9V (R-ATC)
| Specification | OptiRout 9.0 (L-ATC) | OptiRout 9.9V (R-ATC) |
|---|---|---|
| X - Y - Z Axis working area | 1300 x 2500 x 200 mm | 1300 x 2500 x 200 mm |
| Resolutions | 0.0025 mm | 0.0025 mm |
| X - Y movement | Rack & pinion gear drive / Taiwan | Rack & pinion gear drive / Taiwan |
| Z movement | Heavy ball screw / TBI | Heavy ball screw / TBI |
| Guide | Linear guide 30 mm (X & Y), 25 mm (Z) - Taiwan | Linear guide 30 mm (X & Y), 25 mm (Z) - Taiwan |
| Spindle | 9 kW, ATC Air-cooled Spindle / 18000 rpm | 9 kW, ATC Air-cooled Spindle / 18000 rpm |
| Boring head & power | n/a | 9V Boring head (5 + 4) / 1.5 kW |
| Tool magazine type | Linear type with 8 tools holder | Rotary type with 12 tools holder |
| Controller & drive motors | WEIHONG with Servo motors & shimpo reducer | WEIHONG with Servo motors & shimpo reducer |
| Working voltage | AC 380 V / 50 Hz, 3 Ø | AC 380 V / 50 Hz, 3 Ø |
| Command code | G code | G code |
| Collet type & size | ER32 (6, 8 mm) | ER32 (6, 8 mm) |
| Compatible software | Art Cam, Alfa Cam | Art Cam, Alfa Cam |
| Oil lubrication system | Standard | Standard |
| Vacuum table & pump | Standard with 7.5 kW air type pump | Standard with 7.5 kW air type pump |
| Machine dimension (L x B x H) | 4200 x 3400 x 2450 mm | 4200 x 3400 x 2450 mm |
| Approx. net weight | 2800 kg | 2700 kg |
Standard Accessories :-
9 kW Air-Cooled ATC Spindle
12-Tool Rotary Tool Changer (OptiRout 9.9 V) / 8-Tool Linear (OptiRout 9.0)
Precision 9V Boring Head (OptiRout 9.9 V only)
Vacuum Table with 7.5 kW Air Pump
WEIHONG Controller with Shimpo Reducers
Automatic Lubrication System
Dust Collection Hood & Safety Covers
Reference Stops & Support Rollers
Optional Accessories
- LnU – Automatic Loading & Unloading System: Boosts productivity and minimizes labor requirements with streamlined material handling.
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
OptiRout 9.9 V includes a vertical boring head and a rotary ATC. OptiRout 9.0 is a routing-only model with a linear ATC, best for simpler operations.
Both rotary and linear tool changers reduce downtime by enabling automatic tool switches, saving time and improving workflow consistency.
Yes, the heavy-duty frame, powerful spindle, servo motion control, and automatic lubrication make it ideal for large-scale production.
Yes, both models support LnU (Loading and Unloading System) to further enhance efficiency and reduce manual labor.
We offer nationwide service support, cost-effective spare availability, and dedicated technical assistance for smooth operations.
