Panel Saw J-3200.in Classic
The Panel Saw J-3200.in Classic by Pilot Machinery is a precision cutting solution designed for professional panel processing applications. Engineered with a high-strength sliding table, this saw ensures smooth and accurate cuts, making it ideal for woodworking industries that demand efficiency and reliability.
With its robust construction and advanced features, this machine supports varied cutting requirements, ensuring maximum productivity and precision. Optional Digital Readout (DRO) systems further enhance usability by providing high-accuracy cutting measurements.
Special Features
- Durable precision sliding table crafted from large-section extruded aluminum, ensuring maximum tensile strength and smooth, accurate cutting performance for long-term industrial use.
- Heavy-duty saw unit featuring an electronically balanced cast component structure, providing powerful and vibration-free operation, even at high speeds for extended cutting sessions.
- Quick and easy blade change system for both main and scoring saws, minimizing downtime while allowing seamless transitions between different cutting operations.
- Advanced fence assembly with an anodized aluminum rip fence and fine-tuning mechanism, enabling parallel cuts up to 1250mm with precise measurement adjustments for high-accuracy results.
- Telescopic cross-cut fence with aluminum guides, allowing easy positioning and square panel cutting, along with angled cuts up to 45° on both sides of the table.
Precision Sliding table made from large-section extruded aluminum profile with a closed structure to offer the maximum tensile strength. The system for carriage is on hardened ground, prism guides, which allows precise, straight cutting
Scoring saw precision lever mechanism.
Anodized aluminum rip fence with sliding system on heavy round bar for parallel cutting up to 1250 mm. Fine setting mechanism allows for precise measurements for parallel cuts.
Easy & fast changing of main saw & scoring saw blades. Also entire saw unit on heavy duty cast iron trunnion
Saw unit vertical movement on precise round guides ensures smooth operation. Its closed structure guarantees high rigidity & a vibration free unit.
The sturdy frame provides a rigid support for all cutting with telescopic cross-cut fence with aluminum guides for precise and easy positioned. Also panels to be squared and cuts at an angle up to 45° on both sides of the table
Digital Read Out (DRO-F) Optional : DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm.
Digital Read Out (DRO-R) Optional : DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm.
Key Features
High-Precision Scoring Saw
Lever-actuated mechanism delivers flawless pre-cuts, preventing chipping and ensuring superior finish on laminated boards.
Heavy-Duty Cast Iron Trunnion Saw Unit
Built for durability and resistance to mechanical stress, ensuring accurate and repeatable cuts over long-term use.
Optional Pneumatic Clamping System
Enhances panel stability during cutting, improving precision, handling, and operator safety.
Digital Readout (DRO) – Optional
Real-time job length measurement with ±0.1 mm accuracy for precise, consistent results.
Independent Motors for Main & Scoring Blades
Enables simultaneous, uninterrupted operation for optimized cutting performance and increased efficiency.
Model Specifications
| Specification | J-3200.in Pro |
|---|---|
| Sliding table length | 3200 mm |
| Sliding table width | 360 mm |
| Max. diameter saw blade | 355 x 30 mm |
| Saw blade speed | 4000 / 5000 rpm |
| Tilting of saw blade | 90° - 45° (manual) with electronic digital read out |
| Max. cutting depth at 90° | 102 mm |
| Max. cutting depth at 45° | 72 mm |
| Up-down movement of saw blade | Manual |
| Motor for saw blade | 5 hp |
| Max. diameter scoring blade | 120 x 20 mm |
| Scoring blade speed | 8500 rpm |
| Tilting of scoring blade | 90° - 45° (manual) with electronic digital read out |
| Up-down movement of scoring blade | Manual |
| Lateral adjustment scoring blade | ±3 mm |
| Max. depth of cut of scoring blade | 5 mm |
| Motor for scoring blade | 1 hp |
| Cutting Width / Rip Capacity | 1250 mm |
| Dimension Main Saw Table | 560 x 900 mm |
| Length Cross - Cut Fence | 2000 (telescopes to 3200 mm) |
| Dust extraction port diameter | 100 & 50 mm |
| Total Power | 6 hp |
| Machine Dimension (L x B x H) | 3400 x 3710 x 1300 mm |
| Approx. Net Weight | 850 kg |
Standard Accessories :-
- Moulding block (3" length)
- Motor pulley & motor fixing plate
- Washer set & mitre gauge
- Toolkit & Machine manual

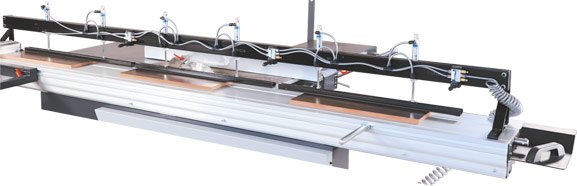

Pneumatic Clamp for Panel Saw
Model:- PC
A very useful accessory. This pneumatic clamp allows more maneuverability in panel handling, sizing and cutting. Also quality cuts on irregular Panels or thin work pieces.
Model:- PC + (2.0)
PC + (2.0) : 3 step Pneumatic Clamp: This 3 step clamp allows more flexibility for handling small pieces.
