Post Forming Machine J-2400
The Post Forming Machine J-2400 is an advanced solution designed for efficient and high-precision laminate post-forming applications. Engineered with 8 pneumatic cylinders, a PLC-based control panel, and a chrome-plated heater bar, this machine ensures uniform pressure application, superior bonding, and smooth operation. Its automatic post-forming cycle with adjustable heating and holding time enhances workflow efficiency, while features like backstop support and dry run settings provide flexibility for different job requirements.
- Model No.
- J-2400
PLC based control panel as standard feature with capacity of 10 programs
Special Pneumatic gauge is operated by 2 pneumatic cylinders for repetitive jobs’ setting

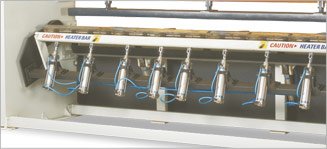

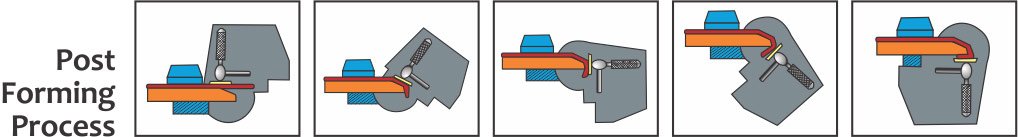

8 – Pneumatic cylinder panel with heater bar to apply uniform pressure on work piece for effective bonding of laminate.
Pressure Clamp working with 3 pneumatic cylinders & having rubber pad for better grip on work piece and to avoid damage to it while clamping.

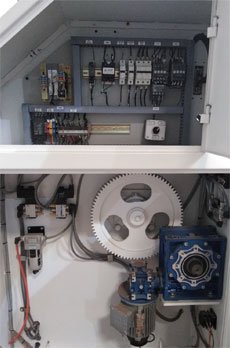

Separate Electronics & Pneumatic compartments for easy accessibility and maintenance.
Features
8 Pneumatic Cylinders – Ensures uniform pressure application on the workpiece for effective bonding.
Ground & Hard Chrome-Plated Heater Bar – Enhances smooth operation and extends the machine’s lifespan.
Backstop Support – Provides stability for long and irregularly shaped workpieces.
Multi-Board Processing – Allows laminating more than one small board at a time for increased productivity.
Adjustable Automatic Cycle – Variable heating, stop-and-go time, and holding time for precise control.
Brake Motor for Heater Frame – Prevents slippage during rotary motion, ensuring precise forming.
Limit Switch Control – Mechanical drive operation for better workflow accuracy.
PLC-Based Control Panel – Stores up to 10 programmable settings for different job profiles.
Pneumatic Gauge System – 2 pneumatic cylinders allow easy repetitive job settings.
Pressure Clamp with Rubber Pad – Securely holds the workpiece with 3 pneumatic cylinders while preventing damage.
Separate Electronics & Pneumatic Compartments – Designed for easy accessibility and maintenance.
J-2400.in - Specifications
| Specification | Unit | J-2400.in |
|---|---|---|
| Max. Length of Work Piece | mm / feet | 2440 / 8 |
| Min. Length of Work Piece | mm | 600 |
| Work Piece Thickness Range | mm | 16 - 105 |
| Min. Work Piece Width | mm | 200 |
| Max. Heating Temperature | degree | 200 |
| Compressed Air Requirement | hp / kg-cm² | 2.0 / 7 |
| Heating Element | kW | 2.4 |
| Electric Motor - 3 Phase | hp | 0.5 |
| Total Power | hp | 3.7 |
| Machine Dimensions (L x B x H) | mm | 3300 x 1000 x 2000 |
| Approx. Net Weight | kg | 1000 |
Standard Accessories :-
PLC-based control panel with 10 programmable settings
8 pneumatic cylinders for uniform pressure application
Pressure clamp system with rubber pads for secure grip
Pneumatic gauge system for repetitive job settings
Toolkit and user manual for setup and maintenance
