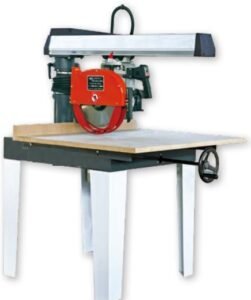

Radial Arm Saw – W600mm
The Radial Arm Saw by Pilot Machinery is a versatile and precise tool ideal for various materials, including wood, plastic, and aluminum alloy. Known for its adaptable design, this saw allows for both longitudinal and transverse cutting, offering a flexible solution for complex cutting tasks. Equipped with a movable cutting head that adjusts to a range of angles (0-90°), this saw is both easy to operate and highly efficient. Available in two cutting width options, it is built for professional use, ensuring accuracy and consistency with every cut.
Features
- Flexible Cutting Angles: The saw head adjusts from 0 to 90°, allowing for versatile cuts to match various project needs.
- Durable Construction: Made with an aluminum alloy support arm, which is lightweight yet strong, enhancing both precision and durability.
- Large Saw Blade Options: Choose between blade sizes of up to 300mm or 400mm, suited for different cutting depths.
- Reliable Power: Equipped with a powerful 3 kW motor, providing consistent performance for demanding cutting applications.
Special Features - Precision Engineering: Built with high spindle speeds of up to 2840 RPM, ensuring precise and smooth cuts.
- User-Friendly Operation: Easy adjustments make it convenient to switch between different cutting angles.
- Heavy-Duty Performance: Suitable for heavy-duty tasks, making it perfect for professional woodworking and manufacturing environments.
Model Specifications - Radial Arm Saw
| Specification | MJ223L | MJ224L |
|---|---|---|
| Maximum saw blade diameter | 300 mm | 400 mm |
| Maximum sawing thickness | 60 mm | 110 mm |
| Cantilever moving distance | 620 mm | 820 mm |
| Motor power | 3 kW | 3 kW |
| Saw blade tilt angle | 0–90° | 0–90° |
| Overall dimensions | 1216 x 1100 x 1460 mm | 1416 x 1100 x 1460 mm |
| Net weight | 240 kg | 250 kg |
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
Yes, the Radial Arm Saw can cut wood, plastic, and aluminum alloy, making it versatile for various applications.
The adjustable saw head, which ranges from 0 to 90°, allows users to make precise angled cuts, expanding the tool’s versatility.
The support arm is crafted from aluminum alloy, providing both strength and lightweight handling for high-precision cuts.
