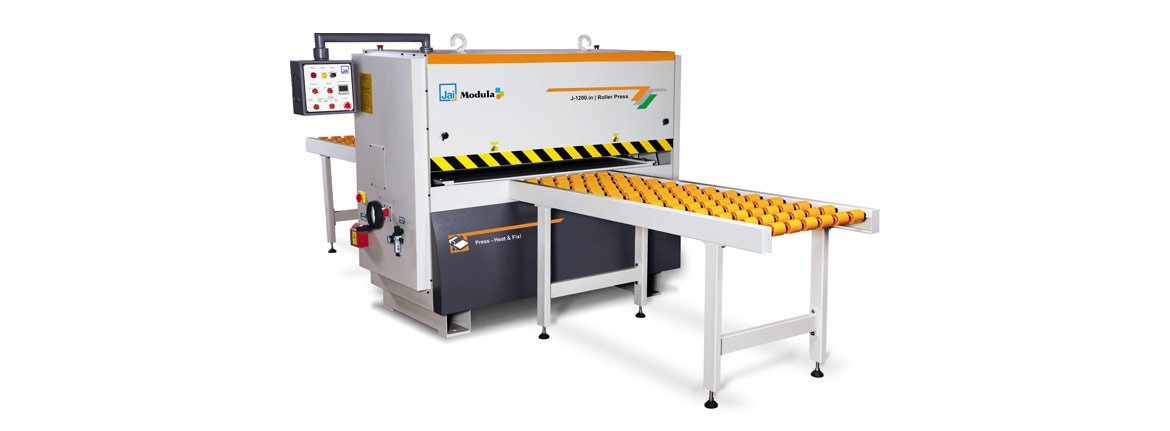

Roller Press J-1200.in(Auto)
The Roller Press J-1200 is an advanced solution for applying laminates, papers, acrylics, veneers, and PVC foils to MDF, particle board, and plywood surfaces. Designed for mass production, this machine operates on a continuous system, ensuring seamless workflow and high efficiency. With hard rubber rollers, four heater elements, and motorized thickness adjustment, it delivers precise and strong bonding of laminates. Its energy-efficient design, adjustable roller speed and temperature, and wide in-feed and out-feed conveyors make it a reliable and cost-effective choice for panel processing industries.
- Model No.
- J-1200.in
Easy accessible mobile control panel at machine in-feed provides convenient operation of the machine for controls & display
Provision of hand wheel for manual setting of work piece thickness
With its in-feed and out-feed wide conveyors, it becomes a continuous production system suitable for mass production
Features
✔ Versatile Application – Suitable for laminates, veneers, acrylics, and PVC foils on MDF, particle board, and plywood.
✔ Continuous Production System – Ideal for mass production with no limit on workpiece length.
✔ Hard Rubber Rollers & Four Heater Elements – Ensures strong adhesion and a perfect finish.
✔ Motorized Thickness Adjustment – Smooth up/down movement for accommodating different board thicknesses.
✔ No Waiting Time – Operates instantly without delay, unlike traditional presses.
✔ Energy Efficient – Consumes less power compared to other press systems.
✔ Adjustable Speed & Temperature – Customizable roller speed and heating settings for precise results.
✔ User-Friendly Control Panel – Mobile in-feed control panel for easy machine operation and monitoring.
✔ Handwheel for Manual Adjustment – Allows quick manual thickness setting when needed.
✔ Wide Conveyors for Efficient Workflow – Large in-feed and out-feed conveyors ensure smooth, high-speed production.
J-1200.in - Specifications
| Specification | Unit | J-1200.in |
|---|---|---|
| Maximum Workpiece Width | mm | 1360 |
| Maximum Workpiece Thickness | mm | 80 |
| Workpiece Feed | m/min | 1 to 7 |
| Air Pressure Required | kg/cm² | 5 to 7 |
| Heating Element | kW | 4.0 |
| Roller Up-Down Motor | hp | 0.5 |
| Roller Drive Motor | hp | 1.0 |
| Total Power | hp | 6.83 |
| Machine Dimensions (L x B x H) | mm | 4800 x 2350 x 1700 |
Standard Accessories :-
✔ Mobile control panel for easy operation and settings adjustment
✔ Hard rubber rollers and four heater elements for uniform bonding
✔ Motorized roller height adjustment for handling various thicknesses
✔ Handwheel for manual thickness settings
✔ Wide in-feed and out-feed conveyors for smooth material flow
✔ Toolkit and user manual for setup and maintenance
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
This machine is suitable for laminates, acrylics, veneers, PVC foils, and more on MDF, particle board, and plywood.
The hard rubber rollers and four heating elements provide uniform pressure and heat, ensuring a strong bond between the laminate and board.
Yes, it operates on a continuous system with no length limitation, making it ideal for high-volume production.
The optimized heating system and efficient roller mechanism consume less power than conventional presses while delivering superior performance.
Yes, both roller speed and heating temperature can be adjusted for optimal results based on material type and application.
