Round Bar Making Machine
Wood is in Our Blood , Wood is Our World

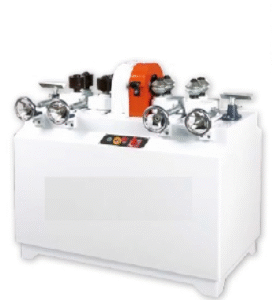

Round Bar Making Machine – RBM-60 in India
The RBM-60 Round Rod Milling Machine by Pilot Machinery is a high-precision tool engineered for converting square or irregularly shaped sticks into perfectly rounded rods. Suitable for materials like wood, rattan, and acrylic, this machine provides smooth, consistent shaping with options for adjustable feed speeds to accommodate various material types. Built for both efficiency and safety, the RBM-60 is ideal for workshops focused on high-quality output and dependable performance.
Features
- Versatile Diameter Range: Processes rods ranging from 6mm to 60mm in diameter, ensuring flexibility for various project needs.
- Adjustable Length: Capable of handling workpieces from 300mm to unlimited lengths, making it suitable for a wide range of applications.
- Powerful Motor Configuration: Equipped with a 5HP drive motor and a 2HP feed motor for powerful and efficient performance.
- High Precision Cutting: Operates at a cutterhead speed of 3400 RPM with four feed speed options (10, 12, 14, and 16 M/min) for different materials.
- Enhanced Safety Features: Includes feed rolls guard, fully enclosed transmission parts, and an optional magnetic switch control for secure and safe operation.
Special Features - Multi-Material Compatibility: Efficiently shapes wood, rattan, acrylic, and similar materials into round rods.
- Customizable Feed Speeds: Four selectable speeds allow operators to match feed rate to material type, enhancing finish quality.
- Built-in Safety Mechanisms: Designed with guards on feed rolls and enclosed transmission parts to ensure operator safety.
- Optional Magnetic Switch Control: Provides added safety and operational convenience.
Model Specifications - Round Bar Making Machine
| Specification | Details |
|---|---|
| Model | RBM-60 |
| Working Diameter Range | Ø6 to Ø60mm |
| Working Length Range | 300mm to unlimited |
| Drive Motor | 5HP |
| Feed Motor | 2HP |
| Cutterhead Speed | 3400 RPM |
| Feed Speed Options | 10, 12, 14, 16 M/min |
| Chip Chute Diameter | Ø100mm |
| Machine Dimensions | 800 x 690 x 910 mm |
| Packing Dimensions | 890 x 730 x 1150 mm |
| Net Weight | 320 kg |
| Gross Weight | 370 kg |
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The RBM-60 is suitable for processing materials such as wood, rattan, acrylic, and similar substances into round rods.
Yes, this machine can accommodate rods from 300mm to unlimited lengths, allowing flexibility for various applications.
The machine includes feed rolls guards, fully enclosed transmission parts, and has an optional magnetic switch control for enhanced safety during operation.
