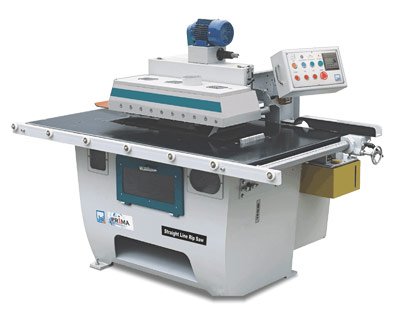

Straight Line Rip Saw J-1163
Pilot Machinery came up with a revolutionary machine designed to be safer, faster, and more efficient than traditional woodworking techniques—the Straight Line Rip Saw J-1163. The patented engineering ensures precise and safe operations, making it highly adaptable for professionals requiring high-performance cutting solutions. Some of its features include conveyor chain blocks, an automatic lubrication system, and variable feeding speed control.
- Model No.
- J-1153 (Top Cutter), J-1163 (Bottom Cutter), J-1164 (Bottom Cutter)
Anti-kickback device, avoids kick- backing of wood, ensure safe cutting
Automatic lubrication system circularly lubricated the entire machine, insure efficient operation and increase service life.
Special material conveyor chain blocks with teeth for better friction and resistance, make workpiece feeding smoother.
User friendly Control Panel. Feeding speed of conveyor can be regulated from panel
Machine is equipped with Laser Light as standard feature
Features
- Safety Engineered
Patented Engineering
The saw shaft rotates in a special direction, significantly reducing the chances of injuries compared to an upper rip saw. - Anti-Kickback Device
Prevents wood kickback to ensure safer and more controlled cutting operations. - Automatic Lubrication System
A circular oil lubrication system increases the machine’s service life, ensuring efficient operation with minimal maintenance. - Superior Conveyor Chain Blocks
Made from special materials with teeth for better friction and resistance, resulting in more efficient workpiece feeding. - Variation of Feeding Speed
The machine regulates conveyor feeding speed, making it ideal for processing wood from various species. - Patented Splitting Cutter
Aids in avoiding the seizing of the saw blade during operation.
Delivers superior performance with minimal maintenance. - Side-Tooth Conveyor Chain Design
Cuts off wood pieces stuck beside the saw blade.
Saves time and prevents blade sticking, enhancing safety. - Control Panel User-Friendly
Simplifies adjustments to the conveyor feeding speed and other settings for optimal performance. - Built-In Laser Light
A standard feature for precise alignment and cutting. - Electric Lifting Feed Table
Allows frequent height adjustments, reducing labor intensity and improving operational efficiency.
Special Design Feature
- Safety Enhancement
Unique saw shaft rotation and anti-kickback feature ensure operator safety during high-speed operations. - Efficient Lubrication and Durability
Automatic lubrication reduces wear and tear, extending machine longevity. - Accuracy and Versatility
Laser-guided cutting and adjustable feeding speed provide tailored solutions for various applications. - Advanced Conveyor Chain Blocks
Special materials and patented tooth designs ensure smooth feeding and minimal risk of blade sticking. - High Power and Robust Construction
Equipped with a powerful spindle motor and a rigid build for vibration-free, reliable performance.
J-1153 / J-1163 / J-1164 - Specifications
| Specification | Unit | J-1153 | J-1163 | J-1164 |
|---|---|---|---|---|
| Max. Working Thickness | mm | 5 ~ 85 | 5 ~ 75 | 5 ~ 115 |
| Min. Working Length | mm | 230 | 200 | 200 |
| Max. Saw Size | mm | 305 Φ | 355 Φ | 455 |
| Spindle Diameter | mm | 25.4 Φ | 50.8 Φ | 50.8 |
| Feeding Speed | m/min | 13.3 - 23.3 | 10 - 30 | 5 - 22 |
| Spindle Speed | rpm | 3750 | 3200 | 2920 |
| Dust Collection Port Diameter | mm | 100 Φ | 125 Φ | 125 Φ |
| Feeding Motor | hp | 1 | 2 | 3 |
| Lifting Motor | hp | 0.33 | 0.33 | 0.33 |
| Main Spindle Motor | hp | 10 | 15 | 20 |
| Total Power | hp | 11 | 17.33 | 23.33 |
Standard Accessories :-
Laser light for precise cutting
Electrical lifting feed table
Patented splitting cutter for blade protection
Special material conveyor chain blocks with teeth
Frequency converter for variable feeding speed
Automatic lubrication system
User-friendly control panel
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
The J-1163 has unique saw shaft rotation, anti-kickback device, and patented splitting cutter to make the operator much safer.
The cutting capacity of J-1163 will be up to 75mm on any wood pieces.
Yes, an inbuilt laser light is one of the built-in features, which helps cut exactly with the perfect alignment.
Absolutely. With a frequency converter, the machine allows for speed in the feeding process with greater versatility.
The machine has an automatic circular lubrication system to be operated efficiently for more service life
