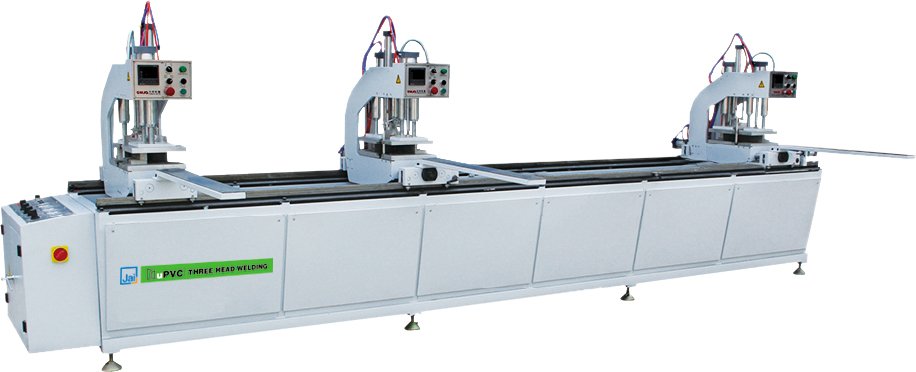

Three Head Welding Machine
The Three Head Welding Machine is a versatile and efficient solution for fabricating uPVC doors and windows. Designed for precision welding, it offers high stability, advanced technology, and ease of use. The machine features independent and synchronized operation of three welding heads, allowing flexibility in various welding applications, including standard and special-shaped doors and windows.
Equipped with PC control and pneumatic transmission, this machine ensures smooth operation, precise alignment, and reliable performance. Its advanced lubrication system and high-quality bearings enhance durability and maintenance efficiency, making it an excellent choice for fabrication units.
Features
Triple-Head Operation: Each head operates independently or in combination for flexible welding applications.
Precision Welding: PC control and high-quality bearings ensure accurate welding results.
Wide Processing Range: Suitable for welding arc windows and special-shaped doors and windows.
Stable Pneumatic Transmission: Provides smooth and reliable operation with minimal vibration.
User-Friendly Design: Simple controls and easy maintenance for efficient workflow.
Durable & Reliable: Uses CM oil-free lubricating bearings and linear motion ball bearings for long-lasting performance.
Special Features (USPs)
Advanced Welding System: Ensures high-quality, seamless welding for uPVC profiles.
Flexible Welding Options: Independent and linked operation for various fabrication needs.
High-Performance Bearings: Ensures durability and smooth motion.
Energy Efficient: Low power consumption while maintaining high productivity.
Compact & Sturdy Design: Ideal for fabrication workshops with space constraints.
Easy to Operate & Maintain: Simple user interface with minimal maintenance requirements.
Three Head Welding Machine - Specifications
| Specification | Value |
|---|---|
| Processing Profile Height | 20 - 120 mm |
| Processing Profile Width (Max) | 120 mm |
| Welding Range | 400 - 3500 mm |
| Working Pressure | 0.4 - 0.6 MPa |
| Air Consumption | 200 L/min |
| Power Supply | 220V / 50Hz |
| Total Power | 3.5 kW |
| Machine Dimensions (L x B x H) | 5300 x 900 x 1750 mm |
Standard Accessories :-
High-precision welding heads for accurate joint formation.
CM oil-free lubricating bearings for smooth motion.
PC-controlled interface for effortless operation.
Pneumatic transmission system for stable welding performance.
Adjustable settings for different welding applications.
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
Yes, the Three Head Welding Machine includes a head that supports welding arc windows and other special shapes.
The pneumatic transmission ensures smooth operation with stable pressure, reducing vibration and improving welding precision.
Yes, despite its advanced capabilities, the machine’s compact design makes it ideal for workshops of all sizes.
The machine operates at 3.5 kW, making it energy efficient for continuous production.
Yes, the three heads can operate independently or in combination, providing flexibility for various welding applications.
