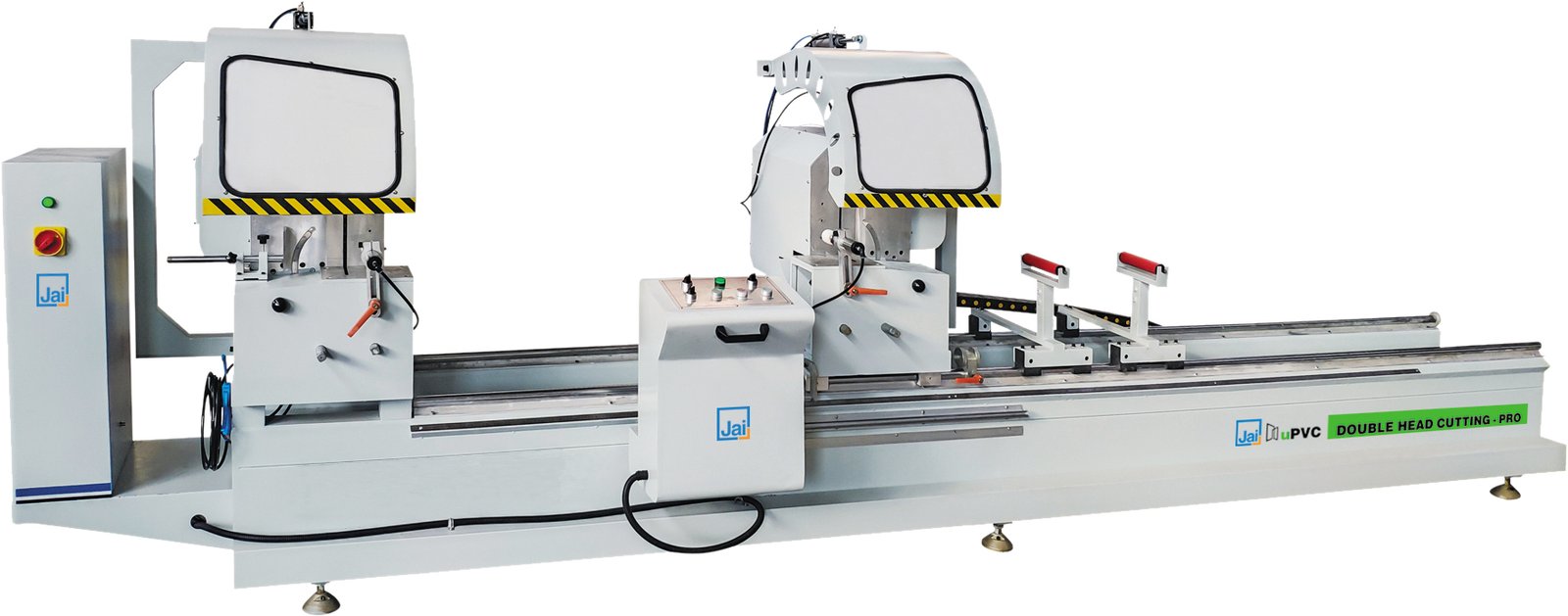

Two Head Cutting Machine (Pro)
THE PERFECT MACHINES FOR EVERY uPVC DOORS & WINDOWS
High-Precision Cutting Solution for uPVC Doors & Windows
The Two Head Cutting Machine (Pro) is engineered exclusively for uPVC profile cutting, ensuring high accuracy, efficiency, and stability. Ideal for uPVC window and door fabrication, this machine features dual cutting heads, precision-guided motion, and adjustable sawing angles to deliver clean, smooth, and accurate cuts.
With its high-precision spindle, automatic safety features, and advanced linear bearing motion system, this machine guarantees superior cutting performance at 45° and 90° angles while maintaining durability and ease of use.
Features
Dual Sawing Angles – Supports 45° and 90° cutting for versatile fabrication needs.
Optimized for uPVC Cutting – Designed for precise and efficient cutting of uPVC profiles.
Stable & Smooth Rotation – High-precision spindle ensures minimal vibration for accurate cuts.
Enhanced Safety Features – Automatic protective cover provides operator safety during operation.
Linear Bearing Motion System – Imported linear bearings ensure smooth and precise movement of the cutting heads.
User-Friendly Clamping System – Follow-up material support frame enhances profile positioning and stability.
Special Features (USPs)
Optimized for uPVC Cutting – Specifically designed for uPVC profile fabrication.
Dual-Angle Sawing – Supports 45° and 90° cutting for versatile applications.
Stable & Durable Performance – High-precision spindle ensures smooth, vibration-free cutting.
Advanced Safety Mechanism – Features an automatic protective cover for operator protection.
User-Friendly Clamping System – Follow-up material support frame for enhanced positioning and stability.
Optional Corner Code Function – Converts the machine into a multi-purpose solution for flexible operations.
Two Head Cutting Machine (Pro) - Technical Specifications
| Specification | Value |
|---|---|
| Sawing Height (Max) | 200 mm |
| Sawing Length (Max / Min) | 3700 / 500 mm |
| Saw Width (Max) | 120 mm |
| Saw Blade Specification | ∅ 450 * 4.4 * 30z * 120 mm |
| Rotating Speed | 2800 rpm |
| Sawing Angle | 45° / 90° / 45° |
| Working Speed | Staples Speed Regulation 0-3 m/min |
| Working Pressure | 0.5 - 0.8 Mpa |
| Air Consumption | 200 l/min |
| Power Supply | 380V / 50Hz |
| Total Power | 2.2 * 2 = 4.4 kW |
| Machine Dimensions (L x B x H) | 5100 x 1400 x 1550 mm |
Standard Accessories :-
High-precision saw blade for uPVC cutting
Automatic protective cover for enhanced safety
High-precision spindle for smooth and stable operation
Follow-up material support frame for easy profile positioning
Linear bearing motion system for superior accuracy
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
Yes, the Two Head Cutting Machine (Pro) is designed only for cutting uPVC profiles, ensuring high precision and durability.
The machine supports precise 45° and 90° angle cutting, making it ideal for uPVC fabrication.
Yes, it includes an automatic protective cover that ensures operator safety during cutting operations.
It helps securely position and clamp uPVC profiles, ensuring more precise and efficient cutting.
The machine operates on 380V / 50Hz with a total power consumption of 4.4 kW.
