Water Slot Router
THE PERFECT MACHINES FOR EVERY uPVC DOORS & WINDOWS

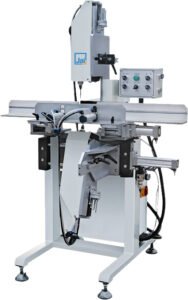

Water Slot Router
The Water Slot Router is specially designed for milling drainage grooves and air pressure balance holes in PVC doors and windows. It features a modular structure with six milling heads, ensuring flexibility in operation. With smooth operation and precise control, this machine is an essential tool for efficient fabrication.
Features
Efficient Slot Milling – Designed for precise drainage groove and air pressure balance hole milling in PVC doors and windows.
Modular Structure – Equipped with six milling heads that can operate independently or in combination.
Flexible Operation – Allows free choice of milling heads for customized processing.
Smooth Performance – The feeding cylinder uses a gas-liquid damping device for stable operation.
User-Friendly Control – Simple and intuitive controls for easy operation and quick adjustments.
Water Slot Router - Technical Specifications
| Specification | Value |
|---|---|
| Slot Width | 4-5 mm |
| Slot Length | 0-60 mm |
| Maximum Groove Depth | 30 mm |
| Working Pressure | 0.5 - 0.8 MPa |
| Air Consumption | 100 L/min |
| Power Supply | 220V / 50Hz |
| Power | 0.76 kW |
| Machine Dimensions (L x B x H) | 1900 x 700 x 1600 mm |
Standard Accessories :-
Six milling heads for multi-angle processing
Gas-liquid damping device for smooth feeding
Adjustable operation modes for different slotting needs
Why Choose us
Largest range of global manufacturers
Ensuring you a wide range of choices, for maximum success, suited to your needs.
Readily Available Spare Parts
At Pilot Machinery, we prioritize minimizing downtime and ensuring your operations run smoothly.
Expertly Trained Service Engineers
Our team of skilled service engineers is dedicated to delivering top-notch support and maintenance.
Trusted Industry Leader
Pilot Machinery has earned a reputation for reliability and exceptional quality.
Frequently Asked Questions
This machine is designed for milling drainage slots and air pressure balance holes in PVC doors and windows.
Yes, the modular structure allows independent or combined operation of up to six milling heads.
It is designed specifically for PVC door and window profiles.
Yes, the machine features an intuitive control system for seamless operation.
The feeding cylinder is equipped with a gas-liquid damping device for stable and smooth performance.
